After an upgrade to version 10.2.3 h4 I got this message: 2023/03/08 20:52:23 info     general        general 0  Received conflicting ARP on interf

L1 Bithead

After an upgrade to version 10.2.3 h4 I got this message:



2023/03/08 20:52:23 info     general        general 0  Received conflicting ARP on interface ethernet1/4 indicating duplicate IP 172.16.0.1, sender mac 00:50:56:92:cd:0c



And this address is for the other peer .



The firewall is a VM300

6 REPLIES 6

Cyber Elite
Cyber Elite

In VMware environment you can't have 2 VMs with same mac address.

For that reason virtual Palos in HA cluster have different mac addresses.

Virtual Palos can have same mac only if VMware port group is configured in promiscuous mode and this is very bad practice.

But to receive conflicting IP address alert both of your firewalls must be active at the same time.

Do you have active/passive HA?

Enterprise Architect, Security @ Cloud Carib Ltd
Palo Alto Networks certified from 2011

Yes the two firewalls in HA.

address and mac for the other peer .

Cyber Elite
Cyber Elite

Are firewalls in active/active or active/passive HA?

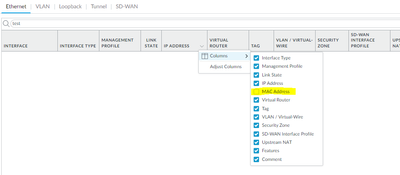

If you enable mac column in both firewalls do mac addresses match on both of them or are they different?




Enterprise Architect, Security @ Cloud Carib Ltd
Palo Alto Networks certified from 2011

HA in active passive .



You will find below the configuration of the interfaces as well as the message on the two firewalls :

========================================================

FW1

> show interface all

total configured hardware interfaces: 9

name id speed/duplex/state mac address
--------------------------------------------------------------------------------
ethernet1/1 16 ukn/ukn/down(power-down) 00:50:56:92:82:af
ethernet1/2 17 10000/full/up 00:50:56:92:7e:bc
ethernet1/3 18 10000/full/up 00:50:56:92:20:2f
ethernet1/4 19 10000/full/up 00:50:56:92:cd:0c
ethernet1/5 20 10000/full/up 00:50:56:92:f7:49
ethernet1/6 21 10000/full/up 00:50:56:92:2f:36
ethernet1/7 22 10000/full/up 00:50:56:92:ae:b6
ethernet1/8 23 10000/full/up 00:50:56:92:77:3a
ethernet1/9 24 ukn/ukn/down(autoneg) 00:50:56:92:5e:a5

aggregation groups: 0


total configured logical interfaces: 9

name id vsys zone forwarding tag address
------------------- ----- ---- ---------------- ------------------------ ------ ------------------
ethernet1/1 16 1 tap 0 N/A
ethernet1/2 17 1 ha 0 192.168.1.67/24
ethernet1/3 18 1 ha 0 192.168.2.67/24
ethernet1/4 19 1 GUEST_LAN vr:DMZ_WIFI_ROUTEUR 0 172.16.0.1/21
ethernet1/5 20 1 DMZ_INTERNET vr:DMZ_WIFI_ROUTEUR 0 90.83.58.124/25
ethernet1/6 21 1 VRF_GUEST vr:DMZ_WIFI_ROUTEUR 0 10.109.32.250/32
ethernet1/7 22 1 DMZ_SORTANTES vr:DMZ_WIFI_ROUTEUR 0 192.168.215.47/24
ethernet1/8 23 1 GUEST_LAN vr:DMZ_WIFI_ROUTEUR 0 172.16.8.1/22
ethernet1/9 24 1 tap 0 N/A



Error message :



============================================

2023/03/08 20:52:01 info general general 0 Received conflicting ARP on interface ethernet1/4 indicating duplicate IP 172.16.0.1, sender mac 00:50:56:a5:bc:3b

==========================================



FW2



=================================================

> show interface all

total configured hardware interfaces: 9

name id speed/duplex/state mac address
--------------------------------------------------------------------------------
ethernet1/1 16 ukn/ukn/down(power-down) 00:50:56:a5:9b:91
ethernet1/2 17 10000/full/up 00:50:56:a5:79:47
ethernet1/3 18 10000/full/up 00:50:56:a5:b1:ca
ethernet1/4 19 10000/full/up 00:50:56:a5:bc:3b
ethernet1/5 20 10000/full/up 00:50:56:a5:0d:e4
ethernet1/6 21 10000/full/up 00:50:56:a5:51:9b
ethernet1/7 22 10000/full/up 00:50:56:a5:5c:c5
ethernet1/8 23 10000/full/up 00:50:56:a5:63:9a
ethernet1/9 24 ukn/ukn/down(autoneg) 00:50:56:a5:de:f0

aggregation groups: 0


total configured logical interfaces: 9

name id vsys zone forwarding tag address
------------------- ----- ---- ---------------- ------------------------ ------ ------------------
ethernet1/1 16 1 tap 0 N/A
ethernet1/2 17 1 ha 0 192.168.1.68/24
ethernet1/3 18 1 ha 0 192.168.2.68/24
ethernet1/4 19 1 GUEST_LAN vr:DMZ_WIFI_ROUTEUR 0 172.16.0.1/21
ethernet1/5 20 1 DMZ_INTERNET vr:DMZ_WIFI_ROUTEUR 0 90.83.58.124/25
ethernet1/6 21 1 VRF_GUEST vr:DMZ_WIFI_ROUTEUR 0 10.109.32.250/32
ethernet1/7 22 1 DMZ_SORTANTES vr:DMZ_WIFI_ROUTEUR 0 192.168.215.47/24
ethernet1/8 23 1 GUEST_LAN vr:DMZ_WIFI_ROUTEUR 0 172.16.8.1/22
ethernet1/9 24 1 tap 0 N/A



===========================================



Error message



========================================

2023/03/08 20:52:23 info general general 0 Received conflicting ARP on interface ethernet1/4 indicating duplicate IP 172.16.0.1, sender mac 00:50:56:92:cd:0c



======================================================================



Thank you

Cyber Elite
Cyber Elite

Did you get arp conflict once during upgrade or are you continuously getting those alerts?

Enterprise Architect, Security @ Cloud Carib Ltd
Palo Alto Networks certified from 2011

L1 Bithead

We still have the error message, I turned off one of the firewall so as not to impact the production
