Protecting Admin UI with Duo MFA

L1 Bithead

I'm attempting to setup Duo MFA with the admin UI of a PA-3220 running PAN-OS 10.2, but have been unsuccessful. I've found that the guide, https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/authentication/configure-multi-factor-aut... is referencing the Duo Access Gateway which is being sunset; new Duo applications using a DAG can no longer be created. Is there any guidance available that includes setting up MFA with PAN-OS 10.2 with Duo SSO?

6 REPLIES 6

Cyber Elite
Cyber Elite

Config should not be any different on firewall side.

If DUO part is unclear then set up DAG profile style and then clone it to new hosted SAML profile.

Enterprise Architect, Security @ Cloud Carib Ltd
Palo Alto Networks certified from 2011

I have an existing DAG profile style application in Duo that I converted to a SAML profile and attempted to use that without success. The firewall side was setup pretty much as described in the current guide.



I'll post a screenshot of a failed logon attempt when I can have someone test this configuration again.

Cyber Elite
Cyber Elite

Did you download xml config file from new SAML profile in DUO, imported it into Palo  "SAML Identify Provider" and changed auth to use this new profile?

Enterprise Architect, Security @ Cloud Carib Ltd
Palo Alto Networks certified from 2011

Yes.

L1 Bithead

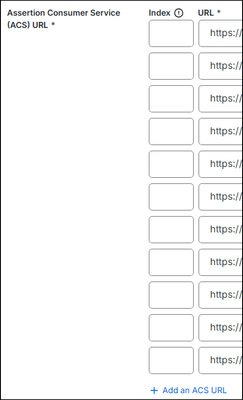

The error that's produced when a user attempts to log in using SSO indicates the AssertionConsumerServiceURL does not match any configured Assertion Consumer Service URLs. The URL in question is using the internal IP address of the firewall. I'm not sure how that IP address made it into the URL; the application configuration does not specify it.

I've resolved the ACS URL issue (misconfigured from the original DAG application somehow). Now, I just need to accounts not authenticating at the Duo SSO sign-in. Seems to be more of a Duo configuration issue than on the firewall.



Thanks for the assistance!
