VM Series in Azure Active/Active

L0 Member

Hi

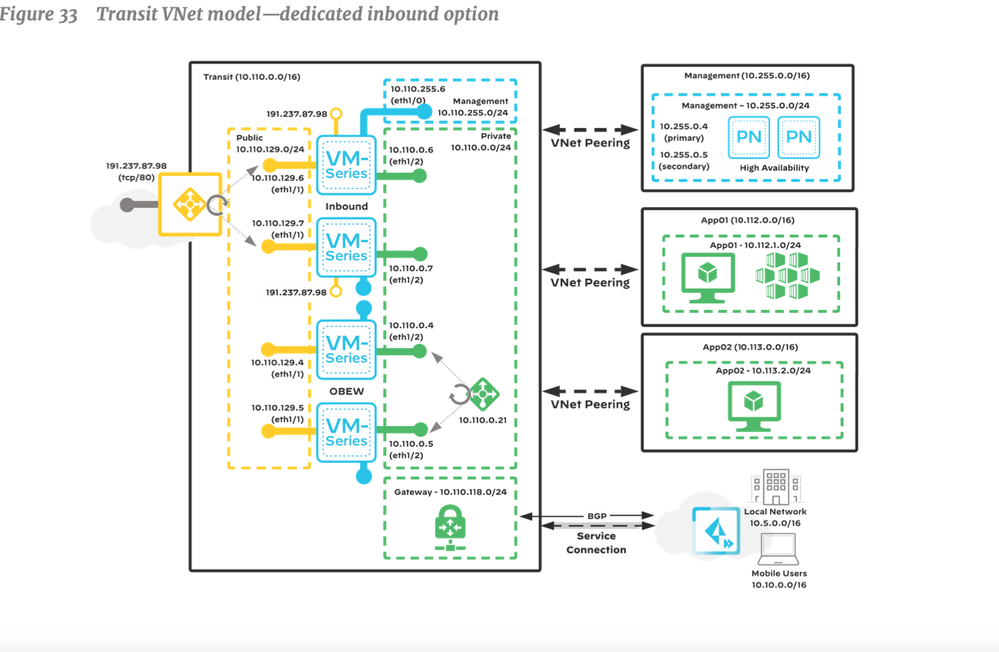

I would like to have this configuration (see picture) for both inbound, outbound and east west and on prem via vpn and  expressroute

Is that the best solution to achieve this? are all the firewalls active active?

I cannot find documentation on setup of this active / active



Thanks



Screen Shot 2024-02-08 at 13.18.23 PM.png

2 REPLIES 2

Cyber Elite
Cyber Elite

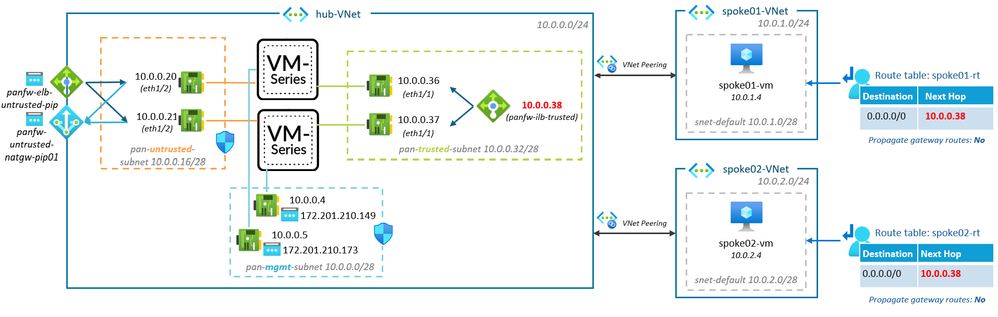

you can run active/active firewalls in Azure by relying on loadbalancers to spread connections over multiple devices.

the picture you attached only has a loadbalancer for the inbound (from the internet). if you need this for any opther direction, you'll need to add loadbalancers between the source and the firewalls

Tom Piens
PANgurus - Strata specialist; config reviews, policy optimization

If i do this one both are active? how is traffic handled? The stateful is achieved how?
