Expedition not producing SET commands

L2 Linker

Upgraded Expedition and now the ' Export / Generate XML and Set Output ' produces a blank (zero byte) MT-project-set.txt file.


Did I miss something in the release notes that this feature is no longer supported ?

I require it for some of my post processing steps.



L2 Linker

Still works for me on v1.1.113.

L3 Networker


Once you have completed your edit of source code in expedition before you export, you should be remember a couple of things to get the proper exported files  both XML & set format files)

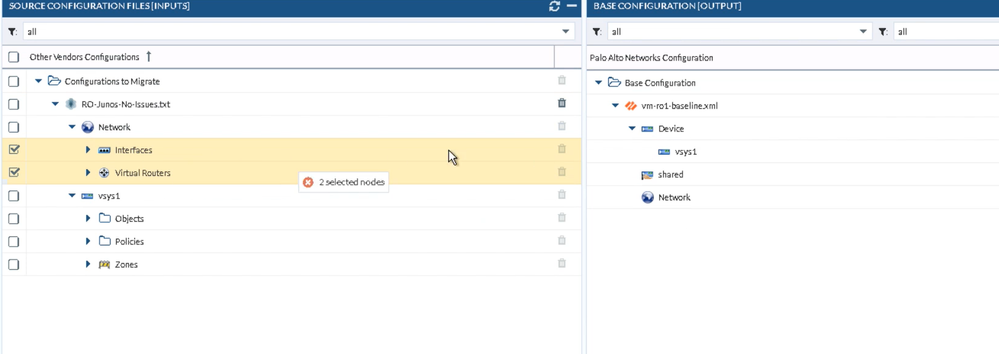

1. You should properly expand baseline and migrated config. It would be best if you correctly moved both Network & vsys1 of migrated config into baseline configuration. pls find the attached referral diagram

2. Next, you click Merge in the same window ( we can take a snapshot before merging. It's optional)

3. Before export config, you can re-check the migrated config now moved to the baseline configuration.expedition-screenshot.PNG

4. Generate XML& SET output in the same window & you can find set-format config only zip file.


Best Regards,



Best Regards,
