access logs from bluecoat proxy to windows user-id agent

L1 Bithead

Trying to get bluecoat proxy to send its access logs to windows user-id agent. configured custom log on bluecoat in the following format



PAN Source=$(c-ip) Username=$(cs-username) Action=$(s-action)



On user-id agent side I am seeing server receiving syslog messages in the format specified



PAN Source=x.x.x.x Username=usernamexxx Action=TCP_HIT

PAN Source=x.x.x.x Username=usernamexxx Action=TUNNELED

...



User-ID agent is confiured with parse filter using Field

Event String: PAN

Username Prefix: Username=

Username Delimeter: \s

Address Prefix: Source=

Address Delimeter: \s



In the UaDebug keep seeing this error



[Error  592]: Syslog msg len read error



Anyone run into the same issue?



What am I doing wrong?











8 REPLIES 8

L6 Presenter

Can you instruct the BlueCoat to separate the fields with a comma or semi-colon?  Then change the setting on the PA to match the delimiter:



Username Delimeter: ,
Address Delimeter: ,



I think the \s is used for regex matching whereas the field match is an exact match and the PA was trying to match \s exactly.

Thank you rmonvon. No result 😞

I see in verbose output that it is processing syslog, but then it shows error at the end.



For example first message in a syslog would be



PFW Source=some ip,Username=johns,Action=TCP_HIT



 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping P
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping F
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping W
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping S
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping o
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping u
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping r
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping c
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping e
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping =
 06/28/16 20:44:58:388[Verbo  596]: Syslog msg len is 10
 06/28/16 20:44:58:388[Debug  371]: Syslog: Unable to display contents of message, it exceeds the length debug messages allow.
 06/28/16 20:44:58:388[Verbo  615]: recv 0-2047, msg 23-22
 06/28/16 20:44:58:388[Verbo  596]: Syslog msg len is 4
 06/28/16 20:44:58:388[Debug  371]: Syslog: Unable to display contents of message, it exceeds the length debug messages allow.
 06/28/16 20:44:58:388[Verbo  615]: recv 0-2047, msg 28-27
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping r
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping n
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping a
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping m
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping e
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping =
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping j
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping o
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping h
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping n
 06/28/16 20:44:58:388[Verbo  617]: Syslog msg, skipping s
 06/28/16 20:44:58:388[Error  592]: Syslog msg len read error



I will try to make a single message shorter

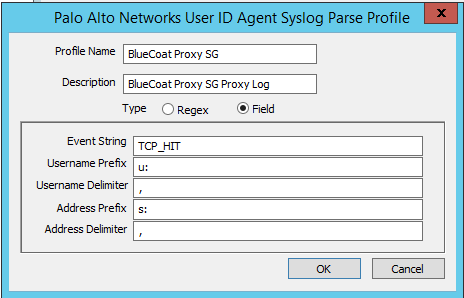

Can you take a screenshot of the syslog field settings on the PA and post it here?



Also, do you have a syslog server like Kiwi syslog server that you can point the BlueCoat to?  We want to confirm the exact syslog output that is being forwarded.




I don't have kiwi, but I have wireshark running on windows box where user-id agent is installed and I am seeing in wireshark something like below



TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_DENIED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_POLICY_REDIRECT,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_CLIENT_REFRESH,u:johns,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_HIT,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TUNNELED,u:johns,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_DENIED,u:-,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_ACCELERATED,u:johns,s:10.1.1.100
TCP_NC_MISS,u:johns,s:10.1.1.100

{edit]

There is no comma after the IP address, and we specify the address delimiter has a comma.  Can you add another syslog field after the IP address to get the comma into the syslog message?



Other than that, I can't see anything wrong with your setup.  The syslog messages match against the fields & delimiters.  I would check the agent itself.  Restart the agent & maybe re-install agent.  Or just install another version of the agent on another server as a test.   Open a support case & have it diagnose is another option.



Thanks.

adding comma did not help.



I am getting the same failure still in vervose log on user-id agent



 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping T
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping U
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping N
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping N
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping E
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping L
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping E
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping D
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping ,
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping u
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping :
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping j
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping o
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping h
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping n
 07/05/16 04:16:27:439[Verbo  617]: Syslog msg, skipping s
 07/05/16 04:16:27:439[Error  592]: Syslog msg len read error
 07/05/16 04:16:27:439[Debug  355]: Event: type="XML API connection" name="<edited proxy IP>" status="Disconnected



I did create a support case, but it appears they are scratching their head too.



I think it may have something to with amount of data bluecoat is trying to send. It does not send syslog messages as individual messages, rather many of them at once.

Humm, that is odd.  Any chance you can try the onbox agent on the PA or spinning a new agent on another Win server?  Or try a different release 6.x or 7.x agent?

We have the same issue in the palo agent is there more information or a solution?

  • 6799 Views
  • 8 replies
  • 0 Likes
Like what you see?

Show your appreciation!

Click Like if a post is helpful to you or if you just want to show your support.

Click Accept as Solution to acknowledge that the answer to your question has been provided.

The button appears next to the replies on topics you’ve started. The member who gave the solution and all future visitors to this topic will appreciate it!

These simple actions take just seconds of your time, but go a long way in showing appreciation for community members and the LIVEcommunity as a whole!

The LIVEcommunity thanks you for your participation!
