06-29-2016 12:45 PM - edited 06-29-2016 02:23 PM
Hi,
I am working on multi-vsys (4) design with PA-7050 chassis. I would like to know if I can use aggregate interface over multiple vsys. I am thinking of using aggregate interface so that i can get link redundancy. The agg interface will have multiple sub-interfaces part of different vsys. Is it possible?
07-07-2016 07:55 AM
@pankaku - do you have multi-vsys enabled? I also checked it on PA-7050 but the default config too has a vsys associated for an interface. I was managed to get the sub-interfaces attached to different vsys however I could not get the base single/agg configured with no vsys. How did you do that?
07-07-2016 09:17 AM
Yes you can see the screenshot it is test on 5060 box.
07-07-2016 11:13 AM

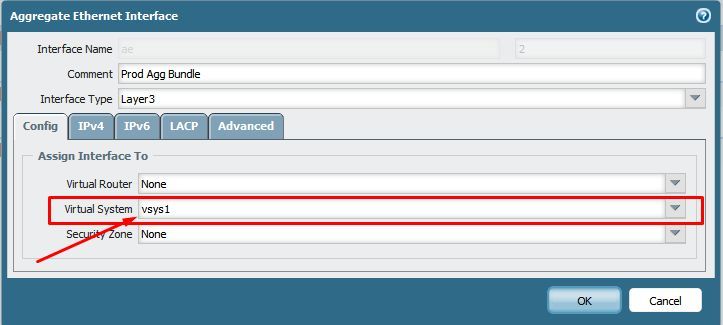

@pankaku Can you please hit Edit for the interface and check the settings? Do you see no vsys under Agg interface? Here is what I see. Though the interface screen shows none for vsys, if you edit the interface it has vsys associated.
