NTLM authentication fails

L2 Linker

Hi all,



I'm facing an issue with captive portal and NTLM.  The SSO (NTLM) fails and the users must enter the credentials via the web-form. I've attached print screens from Wireshark and the output from the userid.log:



PAN-OS: 8.0.1

User-ID Agent: 8.0.1-21



[2017/04/25 11:07:48, 0] utils/ntlm_auth.c:get_winbind_netbios_name(172)
could not obtain winbind netbios name!
2017-04-25 11:07:48.411 +0200 Error: pan_ntlm_handleType3Msg(pan_user_id_l3svc_ntlm.c:567): NTLM Auth failure for user got\pete vsys 1




Br.
Per Tenggren
1 ACCEPTED SOLUTION

Accepted Solutions

Found the issue, the User-ID service was not enabled on the interface used for redirection.



FYI, it not needed to set the NTML parameters on the firewall if Windows User-ID agent are used. It will act as a proxy for such request.

Br.
Per Tenggren

View solution in original post

6 REPLIES 6

L7 Applicator

Has it ever worked?

Browser is IE right?

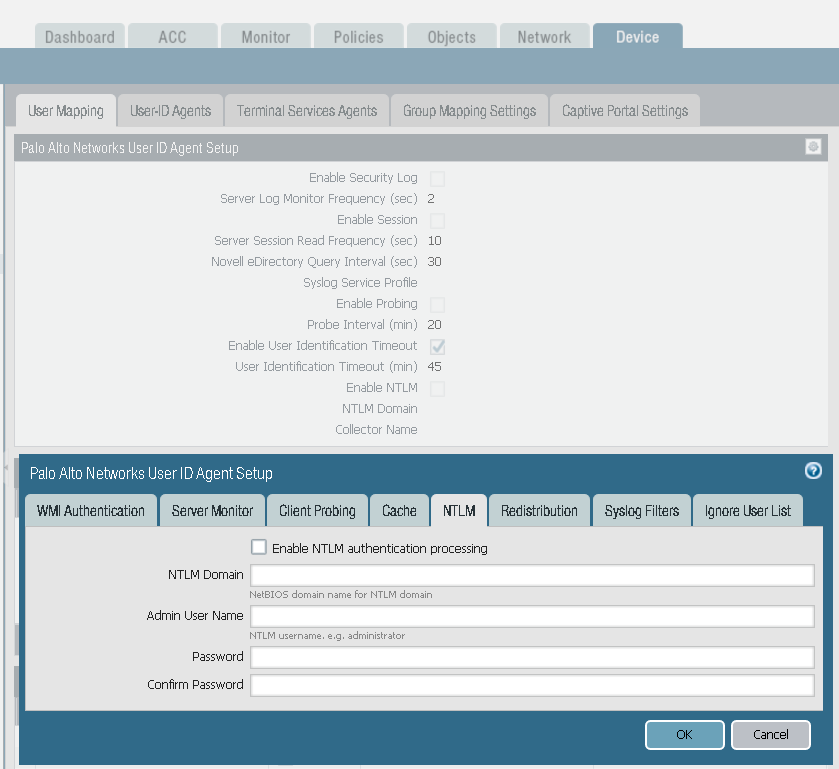

You have added your firewall into AD domain right (picture below)?




Enterprise Architect @ Cloud Carib www.cloudcarib.com
ACE, PCNSE, PCNSI

Cyber Elite
Cyber Elite

It sounds like NTLM is just either not configured or misconfigured on your User-ID section. I would verify this and make sure that everything there is correct.

It's IE yes, new installation. Do I really need to do that when using external User-ID servers?
Br.
Per Tenggren

Yes you need to add NTLM data that creates firewall computer object into domain and gives firewall capability to use NTLM to authenticate users.

Enterprise Architect @ Cloud Carib www.cloudcarib.com
ACE, PCNSE, PCNSI

OK, I thought the User-ID Agent (external) acted as a proxy between the firewall and the domain controllers.

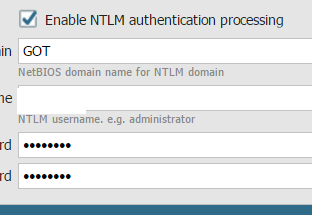

Never the less, I’ve added the NTLM configuration on the firewall but still no luck. What I noticed is that the firewall do not join the domain. Can that be forced somehow?




Br.
Per Tenggren

Found the issue, the User-ID service was not enabled on the interface used for redirection.



FYI, it not needed to set the NTML parameters on the firewall if Windows User-ID agent are used. It will act as a proxy for such request.

Br.
Per Tenggren

View solution in original post
