Panorama commit succeeds with warning after firewall config import

[dan731028]

Hello Community,
Recently I did my first configuration import a firewall into Panorama.  Everything works as expected, but when I do a device group commit, I get the following message in panorama:

Details
Configuration committed successfully

Warnings
vsys1
(Module: device)

When I take a look at the firewall, it says the commit was successful.  In managed devices in Panorama, last commit state is "commit succeeded with warnings".  Any idea what I need to change in the Panorama config to make this warning go away?  Both Panorama and firewall are running PAN-OS 7.0.11.

Commits to firewalls with their configuration originally built in Panorama do not experience the issue.

Thanks for any help!

[reaper]

Hi Dan

is there additional information on Panorama when you click on "commit succeeded with warnings". ?

[dan731028]

This is the detail I get from Panorama:

Details
Configuration committed successfully

Warnings
vsys1
(Module: device)


If I log into the firewall and look at the commit status, I see this:

Details
Configuration committed successfully

There seems to be a reference to vsys1 in the config that Panorama isn't expecting.

[dan731028]

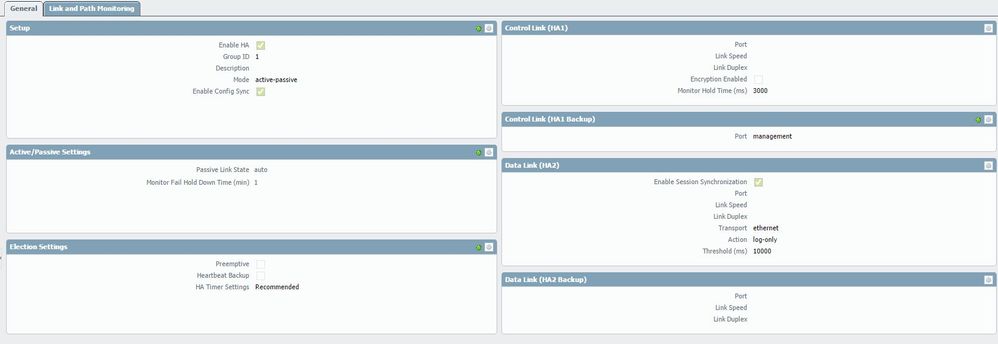

Here's a screen shot of the details in Panorama.  I don't have a screenshot from the firewalls themselves, but it just says the configuration committed successfully.

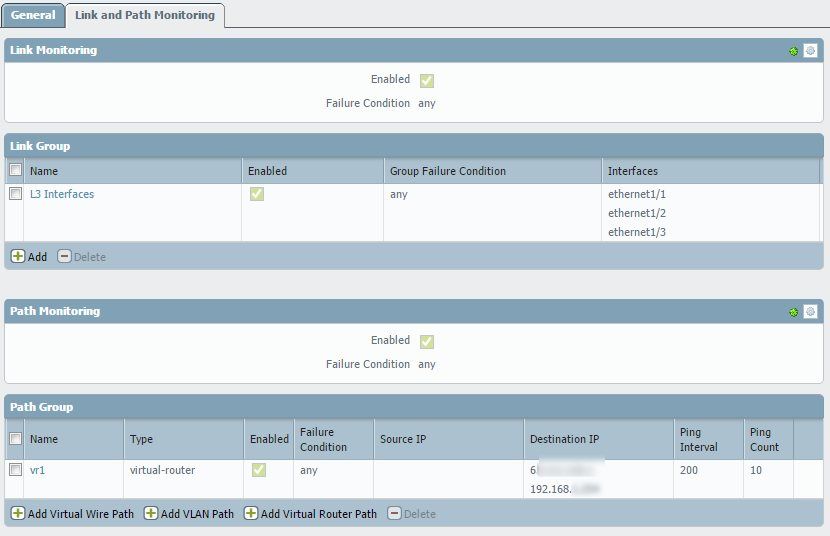

The other unique thing about this firewall import is it was for an HA A/P pair.  All the other devices are single firewalls.  Getting the commit with warnings on the active and the passive firewall.  Could the imported HA configuration be causing an issue?  I do have link and path monitoring configured in Panorama that's being pushed to the firewalls.

[dan731028]

I have another firewall that was imported exhibiting the same behavior, and it isn't running in HA.  Any thoughts on this one?

[BenjAudy.MTL]

Do you have multiple vsys in Panorama and the target firewalls? Do you see something unusual there?

[dan731028]

So sorry for the late reply, but the issue is still occurring and I'm seeing it on more firewalls I've imported.  Multi-VSYS is not enabled in Panorama or on the firewalls, so I'm not seeing anything out of the ordinary there.

[acc6d0b3610eec313831f7900fdbd235]

Hi @dan731028

I faced this problem a few times in the past, and in my particular case it was associated with the certificate chain I was using for GlobalProtect.

For example: If I only upload the certificate but not the Root and Intermediate certificate, Panorama returns this error although it does not actually indicate that it is the issue.

So, I wanted to ask if you have uploaded any certificates to Panorama or to one of your templates, that do not have the root or intermediate certs chained.

Willian

[dan731028]

Hi @acc6d0b3610eec313831f7900fdbd235

I do have a certificate chain for GlobalProtect as we're using a wildcard certificate for that, and the two that are presenting the error do have the certificate chain installed.  I'm not getting any error messages when I commit on the firewalls themselves that the certificate chain is incorrect or anything and the certificates are nested as expected in Panorama and the firewalls in Device>Certificates.  I've double-checked the chain and I do have the correct ones installed.  Would it be worth removing and re-adding the chain?

[acc6d0b3610eec313831f7900fdbd235]

@dan731028

I would say so. Try to remove the entire chain and re-adding it.

In my experience, this was the only thing that caused this type of error to occur.
