Problems with HIP profile logs

[Radmin_85]

There is problem with Global Protect HIP profiles. HIP logs can not be displayed by firewall

What could be the reason?

[kiwi]

Hi @Radmin_85,

You're not giving us much to work with ... what debugging have you done already and what OS are you running ?

Maybe:

https://live.paloaltonetworks.com/t5/Management-Articles/HIP-checks-are-not-logged-and-traffic-is-al...

Cheers !

-Kiwi.

[LukeBullimore]

Hi @Radmin_85

Are you saying that when you go to Monitor -> HIP Match there are no entries? Please note for entries to appear here it must match the below criteria:

GlobalProtect Gateway License Valid

The HIP Object is matched: (Objects -> HIP Objects)

HIP Collection is turned on in the portal: Network -> Portals -> Portal Name -> Agent -> Config Name -> Data Collection -> Collect HIP Data

Otherwise, are you saying you receive an error when trying to display these logs? Could you perhaps provide any more insight into the issue you're facing?

Thanks,

Luke.

[Radmin_85]

PA OS 8.1.2

I will give more info soon

[Radmin_85]

i have made all you reccomendations

but there is no entry under monitor tab

[LukeBullimore]

Hi @Radmin_85,

I presume you have a GlobalProtect Gateway License. Could you send a screenshot of your HIP Profile and HIP object and attach the pangps.log file from the GlobalProtect "Collected.zip" from the client machine?

https://live.paloaltonetworks.com/t5/Management-Articles/How-to-Collect-Logs-from-GlobalProtect-Clie...

Edit: also the output from the command:

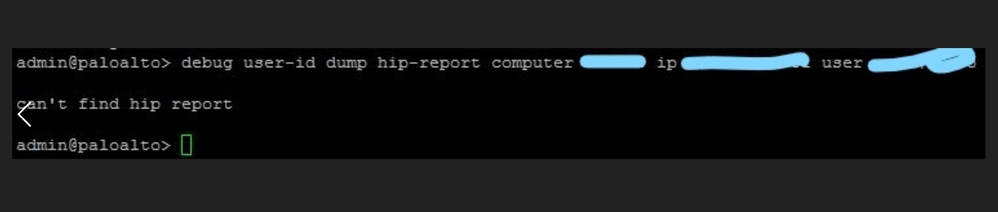

> debug user-id dump hip-report computer <computername> ip <ip> user <username>

Thanks,

Luke.

[Radmin_85]

how i can add here log files collected from GP agent?

[LukeBullimore]

Hi @Radmin_85

You may upload them to some cloud storage such as Google Drive, OneDrive etc then share the link here.

Do you also have a screenshot of your HIP Profiles and Objects on the firewall?

Thanks,

Luke.

[Radmin_85]

https://drive.google.com/open?id=12P6jgmVXWtDj7A0uYaf0TUIecDTNaRM8

[LukeBullimore]

Hi @Radmin_85,

So HIP checking appears to be running.

(T15896) 03/12/18 15:47:53:181 Debug(3976): HipReportThread: HipReportThread starts up.
(T15896) 03/12/18 15:47:53:181 Debug(4002): HipReportThread: wait for HIP report ready event.
(T10032) 03/12/18 15:47:53:181 Debug( 25): create thread 0x798 with thread ID 15916
(T15788) 03/12/18 15:47:53:181 Debug(4208): NetworkConnectionMonitorThread: network connection monitor thread starts.
(T15916) 03/12/18 15:47:53:181 Debug( 167): Start HipCheckThread
(T10032) 03/12/18 15:47:53:181 Debug( 25): create thread 0x794 with thread ID 15908
(T15916) 03/12/18 15:47:53:181 Debug( 210): HipCheckThread started...
(T15916) 03/12/18 15:47:53:181 Debug( 216): HipCheckThread: wait for hip check event for 3600000 ms);

However, you're not matching any HIP profiles because you're not able to connect to the GlobalProtect portal.

(T10032) 03/12/18 15:47:51:427 Debug(5724): portal status is Invalid portal.

(T10032) 03/12/18 15:47:53:529 Info (6766): Portal config does not exist, try registry/plist

(T10032) 03/12/18 15:47:53:529 Debug(4677): --Set state to Disconnected

Can you confirm your GlobalProtect Portal is appropriately configured with an Agent Config? Please follow from Step 5 in the below example documentation.

https://live.paloaltonetworks.com/t5/Configuration-Articles/Basic-GlobalProtect-Configuration-with-U...

Thanks,

Luke.

[Radmin_85]

I have tested . no event is logged in the HIP Match log  . and also traffic  from smartphone not denied. I suppose  global protect clients not  sending HIP  info  to palo alto.


[Radmin_85]

admin@paloalto> debug user-id dump hip-profile-database statistics

Total number of hipmask in database: 9
Total number of logout records in database: 75
Total size of hip reports: 1033KB used / 740352KB

admin@paloalto> debug user-id dump hip-profile-database ipmapping

Total number of ipmappings in database: 0
No record exists or matches!

admin@paloalto> debug user-id dump hip-profile-database entry

Total number of hipmask in database: 9
Total number of logout records in database: 75
Total size of hip reports: 1033KB used / 740352KB
No record exists or matches!

[MarekWalczak]

Is there any commands I can run to display version of GlobalProtec client for all users? The version can be seen from the gui but for just a given user and the same info I can get by running below commands but again this command displays a version for that user only.

debug user-id dump hip-report computer <computer-name> ip <global-protect-assigned-ip> user <username>
