show user group list - Shows custom group only

Cyber Elite
Cyber Elite

Under group mappings of LDAP i have so many AD groups.



But when i run below command



show user group list


Total: 1
1* : Custom Group



IT does not show me any group names from AD?

what is the reason for that?



Also what is difference between Custom group and AD groups in LDAP?

MP

Help the community: Like helpful comments and mark solutions.
30 REPLIES 30

L7 Applicator

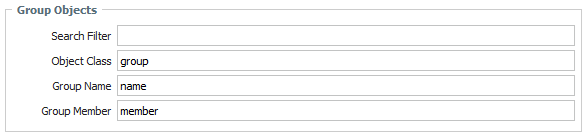

do you have the correct setting in device/user identification/group mapping settings/server profile/group objects/object class



this needs to set to group. if set to user it will not show in cli






AD groups are all users with the group attribute of "member"



custom groups are defined from an attribute of your choice, in affect...   a custom group...

I have same settings as you have shown

MP

Help the community: Like helpful comments and mark solutions.

and are your groups listed in "included groups" as below




yes i have as you mentioned.

MP

Help the community: Like helpful comments and mark solutions.

try...



show user group-mapping state all





can you see a line with "proxy state"



if you can then go to user-id agents and remove "use as ldap proxy"

no i do not see line with proxy state

MP

Help the community: Like helpful comments and mark solutions.

are you running multi VSYS?

Not running multivsys

MP

Help the community: Like helpful comments and mark solutions.

show user group-mapping statistics





how many groups are numbered here?







do you use policies based on group mappings and do they work?

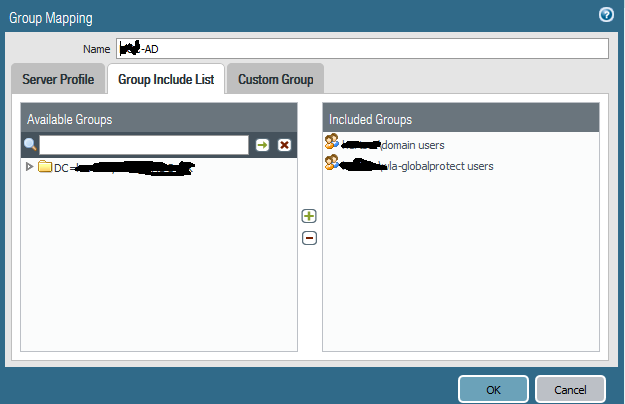

also can you post a screen shot of the group include section.





show user group-mapping statistics



















































Name Vsys Groups Last-Action(secs) Next-Action(secs)
---------------------------------------------------------------------------
Group_Mapping_1 vsys1 11 2587 secs ago(took 0 secs) In 1013 secs
Group_Mapping_2 vsys1 8 2590 secs ago(took 0 secs) In 1010 secs





yes i use group mapping in policies and  they work

MP

Help the community: Like helpful comments and mark solutions.

Added

MP

Help the community: Like helpful comments and mark solutions.

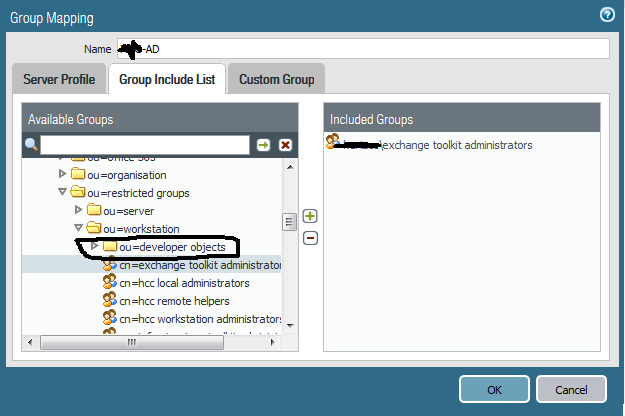

in your screen shot i cannot see the OU for any of the groups.



could you find one of the groups in the available list and make sure it has no special characters in the OU.  as below.



if my OU was called developer&objects it would not show in CLI.




and i may have mentioned this before but just check your user ID agent settings and make sure none of them have a tick in "use as LDAP proxy".
