PAN-OS: 10.1.6-h6
Issue: SNMP (V3) not working on Management Interface.
Description:

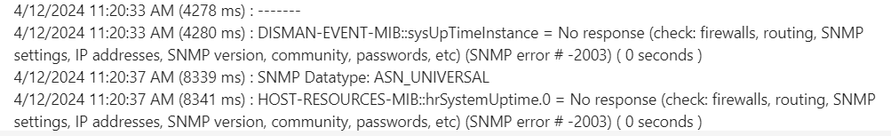

Customer have configured SNMP monitoring from Logic Monitor and Palo Alto but and its working fine for Dataplane interface but if we change it to management interface its not working and getting the error message as below.
Troubleshooting Done:
1. Checked the configuration and its correct and working fine when the interface changed from Management to Data plane Interface.
2. SNMP option is enabled in Mgmt Interface and IP address of the SNMP tool is permitted in the Mgmt Interface settings.
3. Checked for the authentication and algorithm and changed it to the recommended (SHA, AES) but issue persists.
4. Restarted the Mgmt and snmpd processes but the issue still persists.
5. Checked for any issues for the specific PAN-OS version and there was none reported.
6. Changed the SNMP version to SNMPV2 but there issue is still the same.
Can anyone help to confirm if there is any known internal issue which is not publicly mentioned and if there is any further troubleshooting or workaround that needs to be performed.
snmpd Logs:
2024-04-12 11:54:25.599 +0800 Init-ing sysd
2024-04-12 11:54:25.603 +0800 sysd worker[0]: 7ff7de253700: starting up...
2024-04-12 11:54:27.603 +0800 Sysd Event: SUCCESS
2024-04-12 11:54:30.603 +0800 connected to sysd with handle:0x5637a27467d0
2024-04-12 11:54:30.603 +0800 Error: pan_snmp_get_refresh_timer_period(pan_snmp_shared_state.c:82): Error:[-5] failed to fetch sysd node.
2024-04-12 11:54:30 module:panChassis init'd
2024-04-12 11:54:30.603 +0800 Initializing module:panSys
2024-04-12 11:54:30 module:panSys init'd
2024-04-12 11:54:30.607 +0800 Initializing module:entityMIB
2024-04-12 11:54:30 module:entityMIB init'd
2024-04-12 11:54:30.707 +0800 Initializing module:entityStateMIB
2024-04-12 11:54:30.707 +0800 entity_sysd_handle_chassis_summary: new_ins:0x1 new_cfgdone:0x1
2024-04-12 11:54:30 module:entityStateMIB init'd
2024-04-12 11:54:30.708 +0800 Initializing module:entitySensorMIB
2024-04-12 11:54:30 module:entitySensorMIB init'd
2024-04-12 11:54:30.713 +0800 Initializing module:hostResource
2024-04-12 11:54:30.714 +0800 Error: get_sysd_chassis_slot_info(pan_platform_common.c:777): Unable to fetch chassis.s%u.info information: NO_MATCHES, try again
2024-04-12 11:54:30.716 +0800 module:hostResource init'd
2024-04-12 11:54:30.716 +0800 Initializing module:interfaces
2024-04-12 11:54:30 module:interfaces init'd
2024-04-12 11:54:30.723 +0800 Initializing module:panSessions
2024-04-12 11:54:30.757 +0800 module:panSessions init'd
2024-04-12 11:54:30.757 +0800 Initializing module:panMgmt
2024-04-12 11:54:30 module:panMgmt init'd
2024-04-12 11:54:30.757 +0800 Initializing module:panGlobalProtect
2024-04-12 11:54:30.757 +0800 module:panGlobalProtect init'd
2024-04-12 11:54:30.757 +0800 Initializing module:panVsysTable
2024-04-12 11:54:30 module:panVsysTable init'd
2024-04-12 11:54:30.757 +0800 Initializing module:lagMIB
2024-04-12 11:54:30 module:lagMIB init'd
2024-04-12 11:54:30.757 +0800 Initializing module:panDeviceLogging
2024-04-12 11:54:30 module:panDeviceLogging init'd
2024-04-12 11:54:30.758 +0800 Initializing module:lldpV2MIB
2024-04-12 11:54:30 module:lldpV2MIB init'd
2024-04-12 11:54:30.758 +0800 Initializing module:bfdMIB
2024-04-12 11:54:30 module:bfdMIB init'd
2024-04-12 11:54:30.759 +0800 Initializing module:panPacketBroker
2024-04-12 11:54:30.764 +0800 packetbroker: there is zero broker stats entry
2024-04-12 11:54:30.764 +0800 env.s1.dp0.fantray.0 updated
2024-04-12 11:54:30.766 +0800 env.s1.dp0.power-supply.0 updated
2024-04-12 11:54:30 module:panPacketBroker init'd
2024-04-12 11:54:30.766 +0800 Initializing module:panHACluster
2024-04-12 11:54:30.767 +0800 env.s1.dp0.power-supply.1 updated
2024-04-12 11:54:30.767 +0800 hacluster: there is zero session stats entry
2024-04-12 11:54:30 module:panHACluster init'd
2024-04-12 11:54:30 NET-SNMP version 5.8
