when connected to global protect VPN unable to see other devices on network

L4 Transporter

when connected to global protect VPN unable to see other devices on network

SD-WAN | Cloud Networking | PCNSE | ICSI CNSS | MCNA | | CCNP | CCSA | SPSP | SPSX | F5-101 |
9 REPLIES 9

L1 Bithead

is Internet connnectivity established when you connect the link ???

Yes Interent is fine, i am able to connect to global protect Gateway also , able to access intranet resources.

Only thing is unable to access local resources like local printer etc.



Thanks in Advance.

SD-WAN | Cloud Networking | PCNSE | ICSI CNSS | MCNA | | CCNP | CCSA | SPSP | SPSX | F5-101 |

Community Team Member

Hi @fatboy1607,



Did you disable access to the local subnet ?

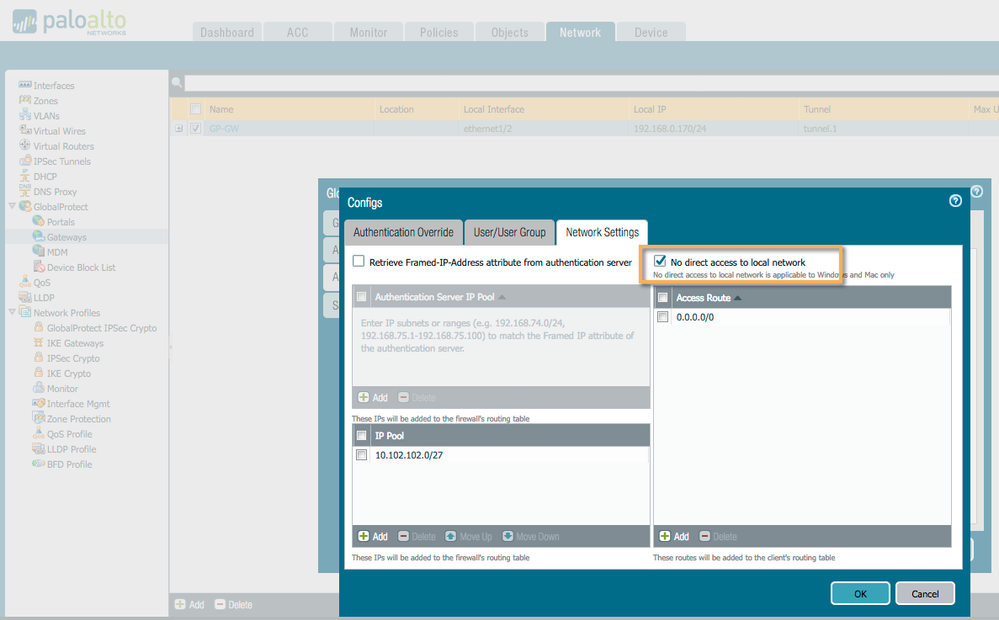

Disable access to local networkDisable access to local network



Depending on your PAN-OS version :



PAN-OS 7.0 : Network tab > GlobalProtect > Gateways > <Your Gateway> > Client Configuration > Network Settings > <Your Config> > Network Settings



PAN-OS 7.1 : Network tab > GlobalProtect > Gateways > <Your Gateway> > Agent > Client Settings > <Your Config> > Network Settings



If that's the case then this article might be useful for you :

GlobalProtect Disable Local Subnet Access



I hope this helps,

-Kim.

LIVEcommunity team member, CISSP
Cheers,
Kiwi
Please help out other users and “Accept as Solution” if a post helps solve your problem !

Read more about how and why to accept solutions.

Thanks Kim



But we have enabled that feature. still local network is not accessible.





SD-WAN | Cloud Networking | PCNSE | ICSI CNSS | MCNA | | CCNP | CCSA | SPSP | SPSX | F5-101 |

Community Team Member

Did you mean disabled ? If the checkbox is checked, then you won't have access to your local resources.



If you want access to your local network, the option needs to be disabled (= not checked).



Hope this helps,

-Kim.





LIVEcommunity team member, CISSP
Cheers,
Kiwi
Please help out other users and “Accept as Solution” if a post helps solve your problem !

Read more about how and why to accept solutions.

it is not checked .

SD-WAN | Cloud Networking | PCNSE | ICSI CNSS | MCNA | | CCNP | CCSA | SPSP | SPSX | F5-101 |

Community Team Member

Hi,



Any access routes configured ?

I'd check my routing table when connected.  Are you egressing the expected interface while connected ?



-Kim.

LIVEcommunity team member, CISSP
Cheers,
Kiwi
Please help out other users and “Accept as Solution” if a post helps solve your problem !

Read more about how and why to accept solutions.

yes Egress interface is correct.

and I can see local routes learned gateway type On-link.

SD-WAN | Cloud Networking | PCNSE | ICSI CNSS | MCNA | | CCNP | CCSA | SPSP | SPSX | F5-101 |

Hi,



As its a gp connection its probably arriving on a different zone. Do you have rules in place to allow the traffic ?

Enable the interzone logging rule and set it to log at session end. Do you see the traffic hit this rule ?

Replicate trying to access machines on the network and filter by the user in the traffic logs , ping a screenshot up as a reply ..



also make sure no denies hitting the threat logs or url logs ..



kind regards



robert D
