Hey guys -



Currently in a trial period with the VM-300 series and using GlobalProtect.  When going through the initial setup with a tech, he mentioned that if we wanted to keep all external traffic off the VPN we could do so.  This would mean that anything that would need internal traffic would use the VPN and anything the user is trying to access on the web would use their ISP.



Could someone either link some documentation or where to find this option so I can look into getting this implemented?



Thanks!

1 accepted solution

Accepted Solutions

L7 Applicator

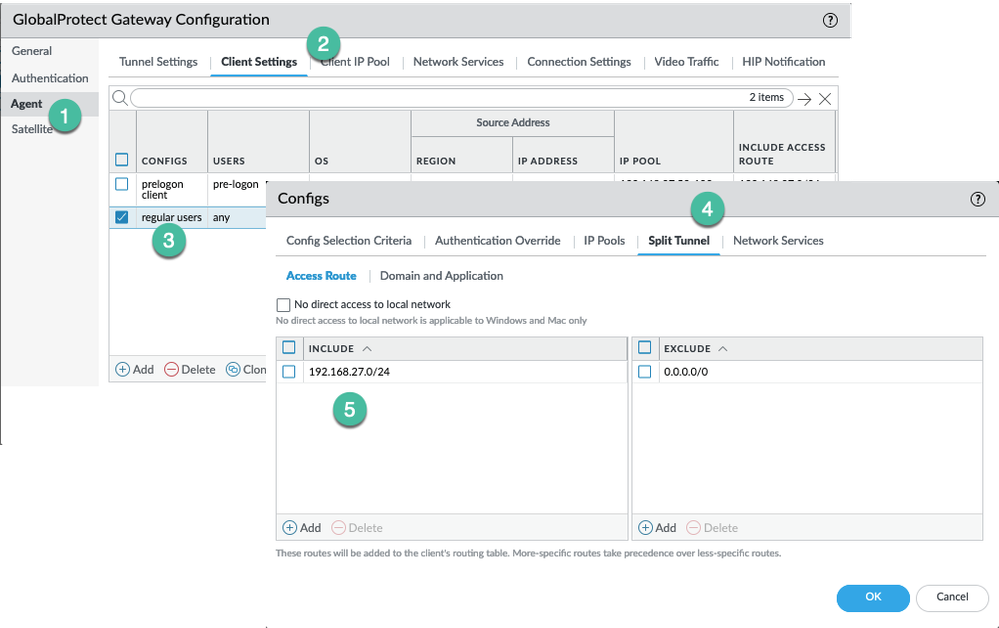

Under network/GP/Gateways/Agent/Client setting you can play with split tunneling.



easiest way would be to add all of your internal subnets into the "Include" section.  anything elas would not use the VPN tunnel.



Or, you can add your domain in the domain and application tab. has the same effect (ish)  it's up to you as will only work with fqdn and not IP.

oute

Just add 10.0.0.0/8, 172.16.0.0/12  and 192.168.0.0/16  to the split tunnel access route...   Bingo....



https://docs.paloaltonetworks.com/globalprotect/10-0/globalprotect-admin/globalprotect-gateways/spli...



https://docs.paloaltonetworks.com/globalprotect/9-1/globalprotect-admin/globalprotect-gateways/split...

View solution in original post

2 REPLIES 2

L7 Applicator

Under network/GP/Gateways/Agent/Client setting you can play with split tunneling.



easiest way would be to add all of your internal subnets into the "Include" section.  anything elas would not use the VPN tunnel.



Or, you can add your domain in the domain and application tab. has the same effect (ish)  it's up to you as will only work with fqdn and not IP.

oute

Just add 10.0.0.0/8, 172.16.0.0/12  and 192.168.0.0/16  to the split tunnel access route...   Bingo....



https://docs.paloaltonetworks.com/globalprotect/10-0/globalprotect-admin/globalprotect-gateways/spli...



https://docs.paloaltonetworks.com/globalprotect/9-1/globalprotect-admin/globalprotect-gateways/split...

concur with @Mick_Ball , just set the 'include' list of subnets and everything else will break out locally (note that Domains and Applications requires a license)


Tom Piens
PANgurus - Strata specialist; config reviews, policy optimization
