Deploying Cloud NGFW for Azure using Terraform

[emgarcia]

This blog was written by Anton Budilovskiy.

Cloud NGFW for Azure is natively integrated into the Azure Resource Manager framework and does not require the use of any vendor-specific APIs for deployment.

In this blog, you will learn how to deploy and configure the Cloud NGFW resource using Terraform. Since Cloud NGFW is directly exposed in the Azure Portal and Azure APIs as a native service, it only requires the Azure Terraform Provider to deploy and configure the resource.

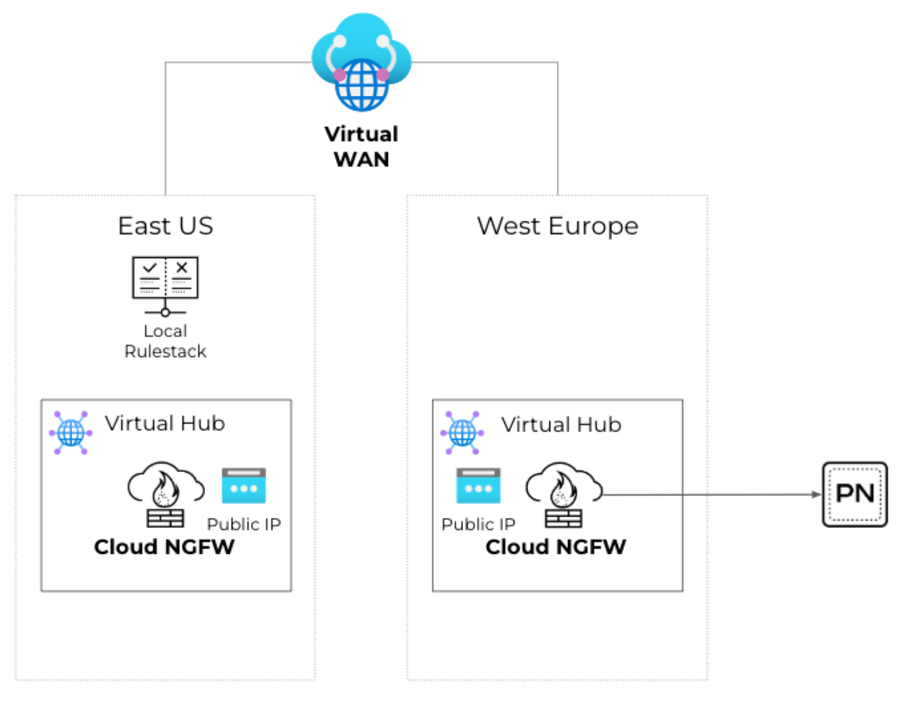

For this deployment, we will create 2x Cloud NGFW resources to secure an Azure vWAN. One Cloud NGFW will be managed by Azure Rulestack, while the other will be managed by Panorama.

The following resources will be created:

1. Resource group
2. Public IP address x2
3. Virtual WAN
4. Local Rulestack
5. Cloud NGFW x2
6. Routing Intent x2

First, in a separate directory create base Terraform files: main.tf, variables.tf and terraform.tfvars.

terraform.tfvars:

region1 = "eastus"

region2 = "westeurope"

rg = "terraform-rg"

panorama-string = "<Panorama registration string"

variables.tf

variable "rg" {

  type = string

}

variable "region1" {

  type = string

}

variable "region2" {

  type = string

}

variable "panorama-string" {

  type = string

}

The features block is mandatory to run any azurerm deployment. If you’d like to stick with the defaults, leave it empty

main.tf:

provider "azurerm" {

    features {}

}

1. Resource Group.

Query an existing Resource Group:

data "azurerm_resource_group" "rg" {

  name = var.rg

}

Or create a new one:

resource "azurerm_resource_group" "rg" {

  name     = "terraform-rg"

  location = "East US"

}

2. Public IP address

Use the Public IP address resource to create at least one IP address that will be associated with the Cloud NGFW

resource "azurerm_public_ip" "cngfw-pip-eastus" {

  name                = "cngfw-pip-eastus"

  resource_group_name = azurerm_resource_group.rg.name

  location            = var.region1

  allocation_method   = "Static"

  sku = "Standard"

}

resource "azurerm_public_ip" "cngfw-pip-westeu" {

  name                = "cngfw-pip-westeu"

  resource_group_name = azurerm_resource_group.rg.name

  location            = var.region2

  allocation_method   = "Static"

  sku = "Standard"

}

3. Virtual WAN

Use the resources and data sources to interact with the vWAN-specific objects. For example,

resource "azurerm_virtual_wan" "vwan" {

  name                = "terraform-vwan"

  resource_group_name = azurerm_resource_group.rg.name

  location            = var.region1

}

resource "azurerm_virtual_hub" "vhub-eastus" {

  name                = "terraform-vhub-eastus"

  resource_group_name = azurerm_resource_group.rg.name

  location            = var.region1

  virtual_wan_id      = azurerm_virtual_wan.vwan.id

  address_prefix      = "10.0.0.0/23"

}

resource "azurerm_virtual_hub" "vhub-westeu" {

  name                = "terraform-vhub-westeu"

  resource_group_name = azurerm_resource_group.rg.name

  location            = var.region2

  virtual_wan_id      = azurerm_virtual_wan.vwan.id

  address_prefix      = "10.0.0.0/23"

}

Cloud NGFW resource requires an NVA object to be created in the target virtual hub:

resource "azurerm_palo_alto_virtual_network_appliance" "nva-eastus" {

  name           = "terraform-nva-eastus"

  virtual_hub_id = azurerm_virtual_hub.vhub-eastus.id

}

resource "azurerm_palo_alto_virtual_network_appliance" "nva-westeu" {

  name           = "terraform-nva-westeu"

  virtual_hub_id = azurerm_virtual_hub.vhub-westeu.id

}

4. Local Rulestack

resource "azurerm_palo_alto_local_rulestack" "lrs-eastus" {

  name                  = "terraform-lrs-eastus"

  resource_group_name   = azurerm_resource_group.rg.name

  location              = var.region1

  anti_spyware_profile  = "BestPractice"

  anti_virus_profile    = "BestPractice"

  file_blocking_profile = "BestPractice"

  vulnerability_profile = "BestPractice"

  url_filtering_profile = "BestPractice"

}

5. Cloud NGFW

First, create a Cloud NGFW resource managed by Azure Rulestack

resource "azurerm_palo_alto_next_generation_firewall_virtual_hub_local_rulestack" "cngfw-eastus" {

  name                = "terraform-cngfw-eastus"

  resource_group_name = azurerm_resource_group.rg.name

  rulestack_id        = azurerm_palo_alto_local_rulestack.lrs-eastus.id

  network_profile {

    public_ip_address_ids        = [azurerm_public_ip.cngfw-pip-eastus.id]

    virtual_hub_id               = azurerm_virtual_hub.vhub-eastus.id

    network_virtual_appliance_id = azurerm_palo_alto_virtual_network_appliance.nva-eastus.id

  }

}

Next, create a Cloud NGFW managed by Panorama. You are required to have a Panorama instance with the Azure plugin installed to generate the Registration String.

resource "azurerm_palo_alto_next_generation_firewall_virtual_hub_panorama" "cngfw-westeu" {

  name                = "terraform-cngfw-westeu"

  resource_group_name = data.azurerm_resource_group.rg.name

  location            = var.region2

  network_profile {

    public_ip_address_ids        = [azurerm_public_ip.cngfw-pip-westeu.id]

    virtual_hub_id               = data.azurerm_virtual_hub.vhub-westeu.id

    network_virtual_appliance_id = azurerm_palo_alto_virtual_network_appliance.nva-westeu.id

  }

  panorama_base64_config = var.panorama-string

}

6. Routing Intent

The last step is to steer the traffic through the Cloud NGFW resources by setting the Routing Intent on both hubs.

resource "azurerm_virtual_hub_routing_intent" "routing-intent-eastus" {

  name           = "terraform-routing-intent-eastus"

  virtual_hub_id = data.azurerm_virtual_hub.vhub-eastus.id

  routing_policy {

    name         = "InternetTrafficPolicy"

    destinations = ["Internet"]

    next_hop     = azurerm_palo_alto_virtual_network_appliance.nva-eastus.id

  }

  routing_policy {

    name         = "PrivateTrafficPolicy"

    destinations = ["PrivateTraffic"]

    next_hop     = azurerm_palo_alto_virtual_network_appliance.nva-eastus.id

  }

  depends_on = [azurerm_palo_alto_next_generation_firewall_virtual_hub_local_rulestack.cngfw-eastus]

}

resource "azurerm_virtual_hub_routing_intent" "routing-intent-westeu" {

  name           = "terraform-routing-intent-westeu"

  virtual_hub_id = data.azurerm_virtual_hub.vhub-westeu.id

  routing_policy {

    name         = "InternetTrafficPolicy"

    destinations = ["Internet"]

    next_hop     = azurerm_palo_alto_virtual_network_appliance.nva-westeu.id

  }

  routing_policy {

    name         = "PrivateTrafficPolicy"

    destinations = ["PrivateTraffic"]

    next_hop     = azurerm_palo_alto_virtual_network_appliance.nva-westeu.id

  }

  depends_on = [azurerm_palo_alto_next_generation_firewall_virtual_hub_panorama.cngfw-westeu]

}

To summarize, we were able to create and provision an end-to-end deployment with Virtual WAN hubs secured with the Cloud NGFW using a single Terraform provider.

See the full code in GitHub.
