Expedition: Set interface Media type

L2 Linker

I have a bunch of interfaces imported from CheckPoint that have no media type; Section Header is "Media:".. and exposing the column "Media".. the column is blank for each interface.  Remap button does nothing.

They are not exporting.



How do I set the media type to Ethernet or Aggregate-Ethernet ?



4 REPLIES 4

L4 Transporter

Hi @gfowler , can you try  double click on each of the interface, it will open up another window for you to change the media type.

I see what your saying.. but that changes the Type (Layer 3, layer 2 etc.)..  it does not change it to ethernet or aggregate-ethernet..   even though there is an option in the pull down for "Aggregate Ethernet", it does not impact the Media Type..



There was a negative effect to attempting that..  it wiped out the IP address information and security zone..  VLAN  tag stayed though. oddly enough..

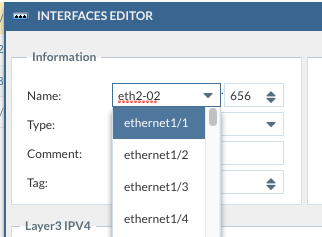

If you changed the name , it should change to Ethernet  as shown in the screenshot :

For Aggregated-Ethernet, you will need to manually click on the "+" on the right upper corner to add it first.



Screen Shot 2021-06-04 at 10.16.03 AM.png



Screen Shot 2021-06-04 at 10.18.31 AM.png

The name can be changed..   but the "Media" does not change..

Look at a column header and expose the Media column, hidden by default.   Mine are blank..



I can create new Ethernet and ae interfaces..  and they appear with new Section headers of Media: ethernet and Media: aggregate-ethernet..    but I can't seem to move my imported interfaces from "Media:" to "Media: aggregate-ethernet".
