block gmail personal ID and allow gmail official ID in palo alto

L4 Transporter

Hi Friends,

please suggest,block gmail personal ID and allow gmail official ID in palo alto.

Regards

Satish

8 REPLIES 8

L5 Sessionator

Hi Satish,

I don't think that is possible with current design. Unless you can verify if the URL you navigate to for both personal and official are unique. If that is the case the case then you can configure ssl decryption on device and allow or deny specific URLs. Which I think is highly unlikely. Hope this helps. Thank you.

L5 Sessionator

Hi,

Google is suggesting as below

Block access to consumer accounts - Google Apps Help

PAN device can decrypt ssl traffic, though it can't insert HTTP header X-GoogApps-Allowed-Domains.

This means PAN device can't handle such a case.

If you have proxy server, you can do it on the proxy.

L4 Transporter

Hello Friends,



Please try this one :-

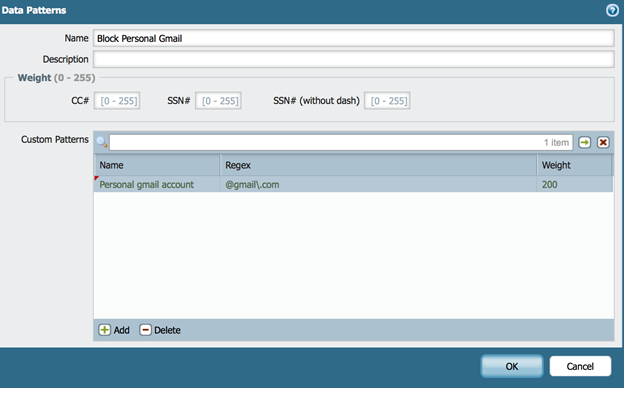

Create a Custom Data Pattern



Objects - custom-objects - data-patternsUntitled.png



match regex pattern @gmail\.com

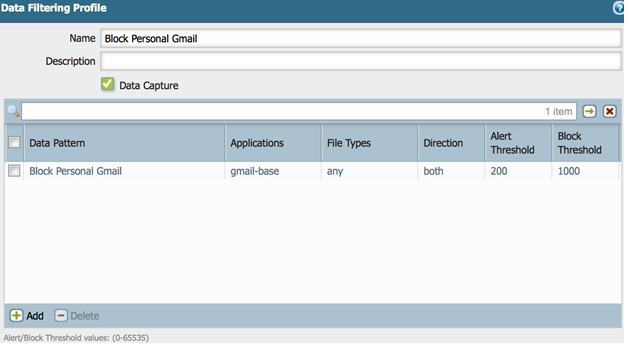

Create a Data Filtering profile



Objects - security-profiles - data-filtering



Match the previously created custom data pattern in the Data filtering profile and application as gmail-base.

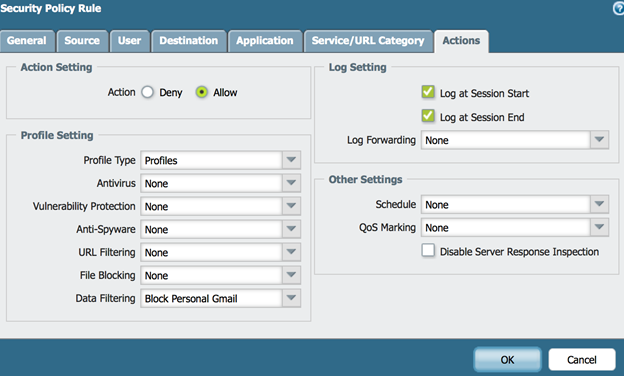

Create a rule allowing all apps with the data security profile attached to it.



Policies – security – rulebase






Data Filtering log: note the first log as it matches the data pattern




Thnaks

Have a look at PA Aperture:

https://www.paloaltonetworks.com/products/aperture.html



This might be your solution. But so far there isn't much info about it yet.

L1 Bithead

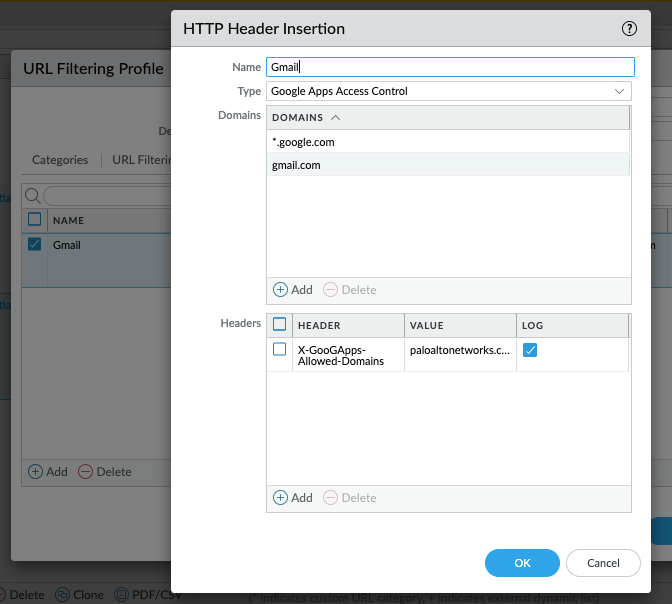

Step1: Add HTTP Header Insertion under URL Filtering Profile

Screenshot 2020-07-23 at 6.16.45 PM.png

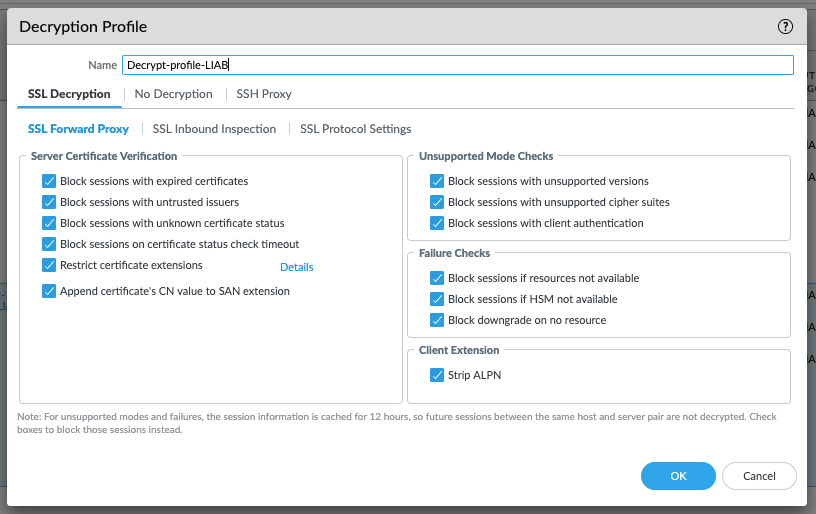

Step2: Create Decryption Profile and enable "Strip ALPN" Under Client Extension

Screenshot 2020-07-23 at 6.18.03 PM.png

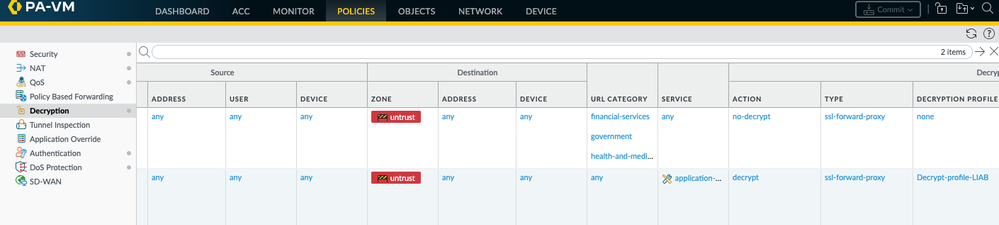

Step3: Add Decryption Profile in your Decryption Policy

Screenshot 2020-07-23 at 6.20.48 PM.png

Step4: Make Sure the URL Filtering is added in your Security Policy

Result: Personal Gmail is blocked

Screenshot 2020-07-23 at 6.23.20 PM.png

FAIZAN SHEIKH
FOLLOW MY FACEBOOK GROUP - Palo Alto Networks Q/A

L1 Bithead

Step1: Add HTTP Header Insertion under URL Filtering Profile

Screenshot 2020-07-23 at 6.16.45 PM.png

Step2: Create Decryption Profile and enable "Strip ALPN" Under Client Extension



Screenshot 2020-07-23 at 6.18.03 PM.png

Step3: Add Decryption Profile in your Decryption Policy



Screenshot 2020-07-23 at 6.20.48 PM.png



Step4: Make Sure the URL Filtering profile is added in your Security Policy



Result: Personal Gmail is blocked

Screenshot 2020-07-23 at 6.23.20 PM.png

Cheers,

Faizan Sheikh

FAIZAN SHEIKH
FOLLOW MY FACEBOOK GROUP - Palo Alto Networks Q/A

L1 Bithead

Thank you so much for the "how to" it really works so well. However I having a particular situation, if a add a a second header, only the first one created works, any suggest?

just simple.

follow google.com example

input 111.com, 222.com in value

Example: X-GoogApps-Allowed-Domains: mydomain1.com, mydomain2.com

mydomain1.com, mydomain2.com
