Destination NAT with multiple server.

L4 Transporter

Hello Team,



I have configured destination NAT in my environment with one server.

Now i can see the number of users increases and too much traffic i am getting in one server, so i want to configure 2 more server with the same services.

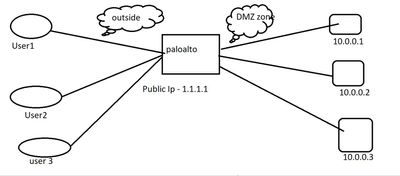

For example:-



If user 1 want to connect my destination it will translate to 10.0.0.1

If user 2 want to connect my destination it will translate to 10.0.0.2

If user 3 want to connect my destination it will translat to 10.0.0.3





please let me know how i can achieve this requirement.






3 REPLIES 3

Cyber Elite
Cyber Elite

@Jafar_Hussain,



Currently you can't achieve it on Palo Alto. You need something like Load Balancer to achieve this requirement.



Mayur

M

@SutareMayur



Thanks for your reply.



I have gone through these documents and found this:-



https://docs.paloaltonetworks.com/pan-os/9-0/pan-os-new-features/networking-features/session-dist-dn...



can we create like this create a one address object with interface range (10.0.0.1-10.0.0.3) and the same object we can allow in destination NAT and we will select the round-robin method?



Please suggest this.





@Jafar_Hussain,



Yes you can give a try, as per the article it should work. I haven't tried it yet.



Mayur

M
