Dropped Traffic

We have PA3000 running 7.1.10

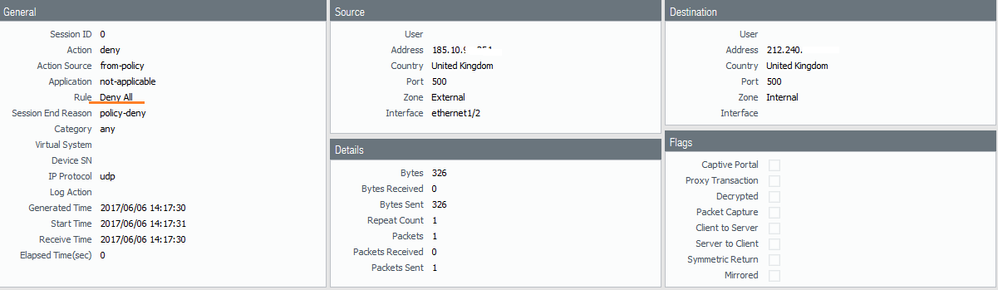

I have issue where tarffic is being droped by the Deny All rule , the last rule even though I have allowed this tarffic to come in ext zone ext zone.

Also for some reason the destination seems to be Internal where as the interafce is the public one.



Does any one have an explanation





Accepted Solutions
Highlighted
L7 Applicator

Yes this rule is the isue.

If you need only limited ports to NAT to internal host then change service Any to tcp/80 or whatever port you need.



Or clone this NAT rule.

Move clone rule above it.

Change cloned rule to add service udp/500 and clear out Destination Address Translation under "Translated Packet" tab.

This will exclude incoming IPSec from DNAT.

Enterprise Architect @ Cloud Carib www.cloudcarib.com
ACE, PCNSE, PCNSI

View solution in original post


All Replies
Highlighted
L7 Applicator

Check if you accidentally apply NAT to traffic that hits your public IP 212.240.x.x port 500.

Maybe you have one-to-one NAT to some internal IP.

Enterprise Architect @ Cloud Carib www.cloudcarib.com
ACE, PCNSE, PCNSI
Highlighted
L2 Linker

Hi

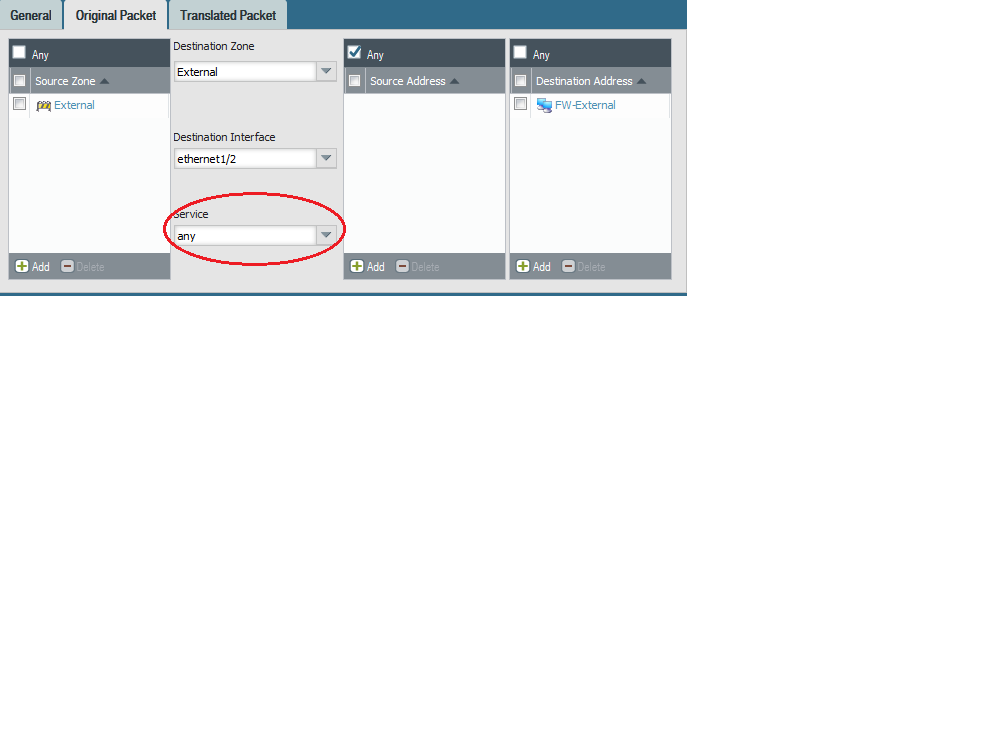

I do have the follwing NAT on the public IP . Is the any service the  issue ? The transalated packet goes to a internal host






Highlighted
Cyber Elite

@RC-BHF,

The any service wouldn't really be an issue. Maybe take a screenshot of the actual policy in the NAT policy screen instead of this section. If you have the NAT configured bi-directional: yes then you could potentially see exactly what you are describing, as the destination interface then would come across as whatever zone that original source address actually resides in.

Highlighted
L2 Linker

This is screen shot from the NAT Policy screen .

There is alos another NAT policy the other way for this IP , so we do have a bi-directionl NAT



Does this NAT policy not imply that all traffic comeing into this IP is NAted to internal IP

I only have a rule to allow public ip , ext zone > my public ip ext zone for ipsec and IKE.



This is being denied by my Deny All rule , I assume becasue the FW is only seeing the NAted destination (internal) becasue NAT is done before the FW Rules are hit ?

Highlighted
Cyber Elite

Wait so you have two NAT policies instead of just one bi-directional policy. That seems like you could easily make this a small amount easier to manage at the very least.

Yes that would be correct, you would want to modify that security policy to show whatever zone you are actually sending that traffic to. For example since everything public facing is in the DMZ zone I have to have security policies that have the destination zone being DMZ with the destination IP being whatever public IP the NAT associates with.

Highlighted
L7 Applicator

Yes this rule is the isue.

If you need only limited ports to NAT to internal host then change service Any to tcp/80 or whatever port you need.



Or clone this NAT rule.

Move clone rule above it.

Change cloned rule to add service udp/500 and clear out Destination Address Translation under "Translated Packet" tab.

This will exclude incoming IPSec from DNAT.

Enterprise Architect @ Cloud Carib www.cloudcarib.com
ACE, PCNSE, PCNSI

View solution in original post

Highlighted
L6 Presenter

Well done all,

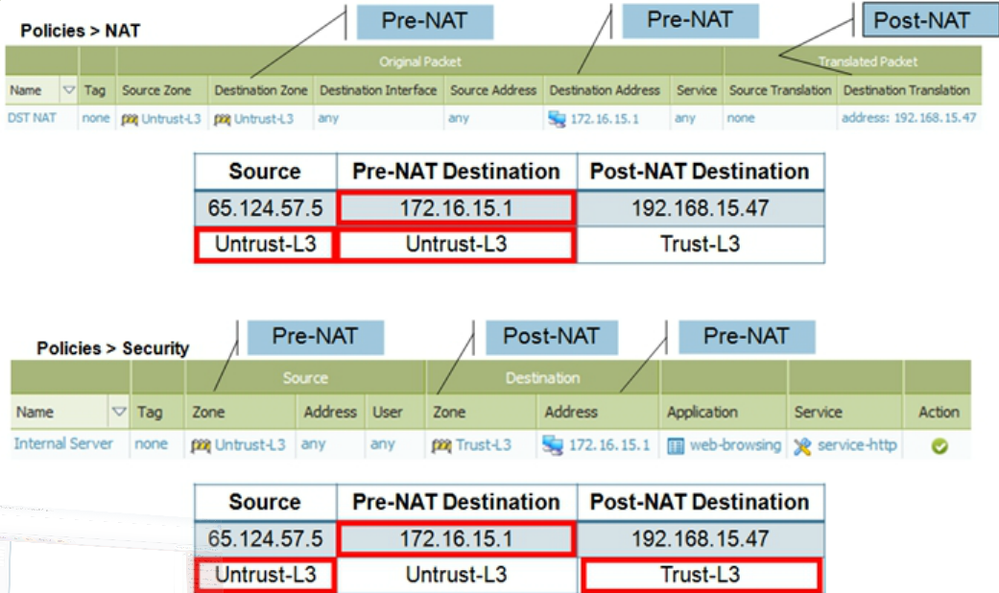

The issue seems with NAT policy:






As @Raido has already mentioned DNAT exempt is needed.
