Graph - Hits per Policy

Hello at all,



in my firewall policy ruleset i have a rule to block all incoming connection attemps from known C2C Server. I use EDL to keep the rule up to date.

For my reporting i need something like a graph which shows me the policy hits in relation to time. Similar to a bandwidth diagramm which shows the traffic for given time period.



Is this possible with the build in features? I use PAN-OS 8.1.12

Highlighted
Community Team Member

Re: Graph - Hits per Policy

Hi @florian.hahner ,

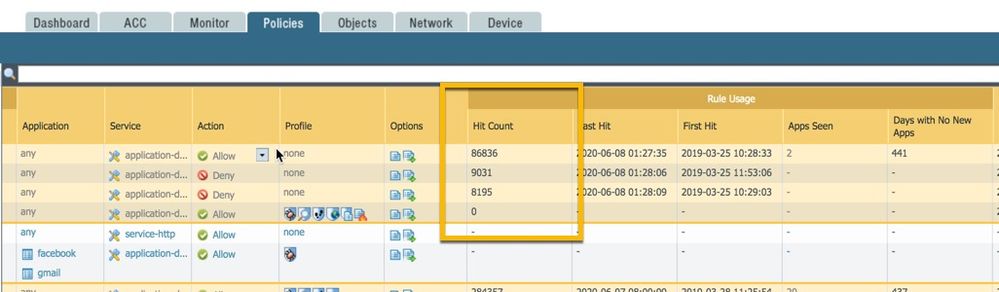

You can look at the Rule hit count column in your security policy :

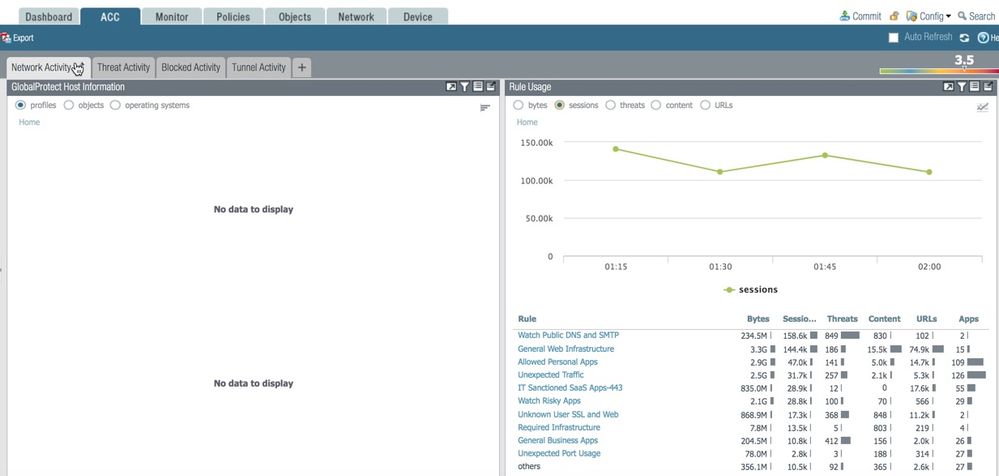

Alternatively, in the ACC there's also a section called "Rule Usage" which might be useful for you :






Hope this helps,

-Kiwi.




Tags (1)
Highlighted
L0 Member

Re: Graph - Hits per Policy

Hi Kiwi.



Thx for your input. The rule usage widget is empty for this rule. In the rule itself i use the drop actions and log at session end.
