HA Active-Passive , Node Pasive shows as Non-functional (Link down)

L1 Bithead

Hi guys ,

I made  an HA configuration test but passive node is showing me as Non-functional (Link down).

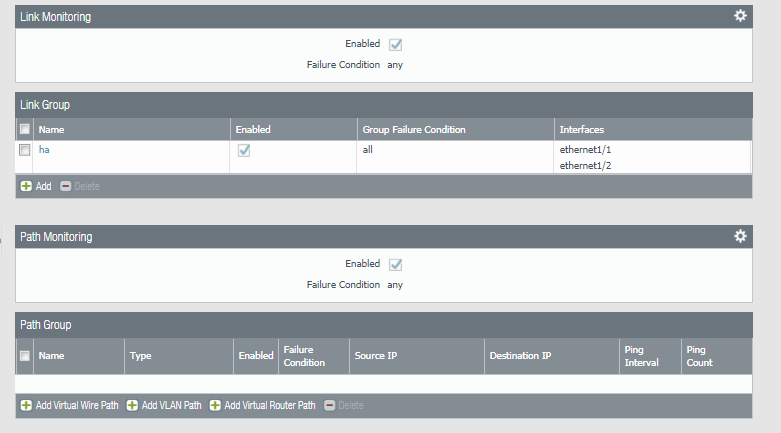

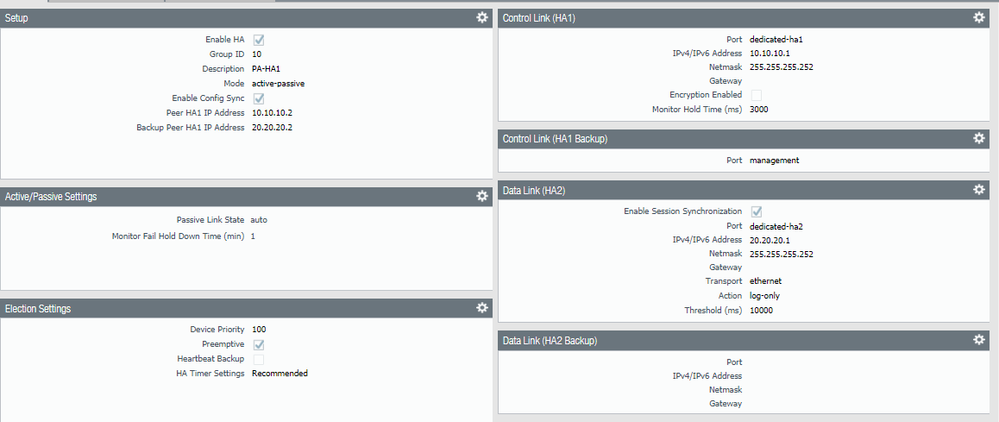

Configuration Active FW

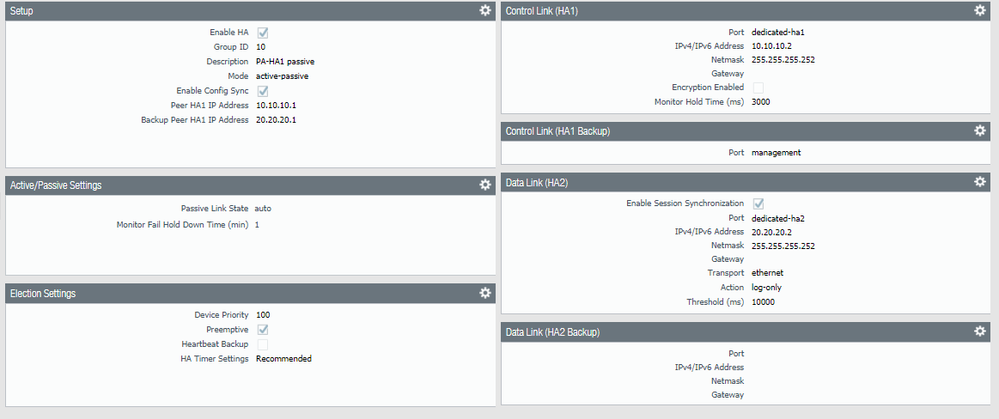

Configuration passive






Any suggestions please

1 ACCEPTED SOLUTION

Accepted Solutions

Cyber Elite
Cyber Elite

- both device priorities are identical

- the backup HA1 peer IP has been configured to 20.20.20.2 but the interface is set to management and the management ip of the peer is 192.168.7.181

-HA2 dedicated link is set to transport mode ethernet, but the ha1 backup IP is configured: in transport mode ethernet, no IP is needed

Tom Piens
PANgurus - (co)managed services and consultancy

View solution in original post

3 REPLIES 3

Cyber Elite
Cyber Elite

- both device priorities are identical

- the backup HA1 peer IP has been configured to 20.20.20.2 but the interface is set to management and the management ip of the peer is 192.168.7.181

-HA2 dedicated link is set to transport mode ethernet, but the ha1 backup IP is configured: in transport mode ethernet, no IP is needed

Tom Piens
PANgurus - (co)managed services and consultancy

Thanks dude

Made a bad configuration .

Thanks a lot

L0 Member

In the case of the 440's, the HA1 and HA2 have to have the same port, but different IP's as you might expect. Hard to distinguish this from other PA's, since they have the same port 'management'.
