How to create e new network interface on a device using Panorama

L1 Bithead

Hi all,

I'm quite new using Panorama.

I need to create a new network interface on a device managed by Panorama.

I tried to modify the template but when I push it to device I got an error telling that there isn't that interface.

Of course I miss something.

Could you help me understanding what?



Thanks

4 REPLIES 4

Cyber Elite
Cyber Elite

@MGatti,

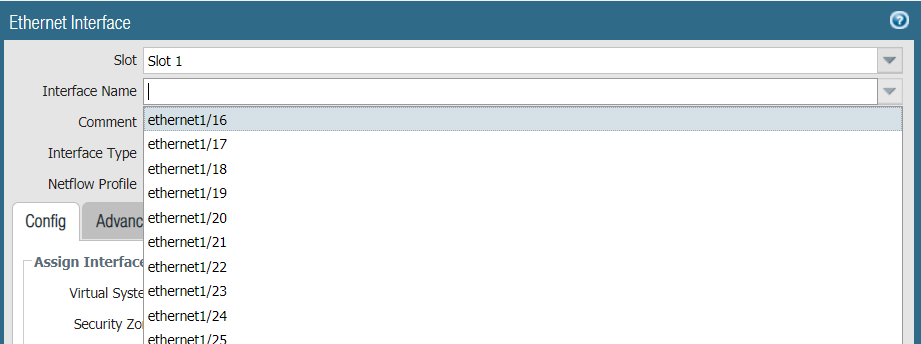

To create new interface through Panorama, you just need to Add Interface and select slot 1 and then under drop down it shows you the interfaces which are available and not yet created yet. Normally you will select Slot 1 unless you have higher model firewalls like 7000 series firewall. Please refer below snap.



Can you verify the interface number you are trying to add from Panorama and the number of interfaces on the firewall ? Check number of available interfaces on the gateway and according to the availability  on the gateway, add respective number interface from Panorama.




M

I need to add a subinterface

But the problem is not adding the subinterface itself but pushing this new config on the device.

In fact when I commit and push to device I got an error:






@MGattiOh so you are trying to configure sub-interface on aggregate interface. Just few questions,  ae1 interface was already created and now you are just trying to add sub-interface under it? - In this case, delete ae1.151 sub-int, commit changes. Then again re-create interface and try to commit changes.



If you have just now created a1 sub-int and simultaneously adding sub interface under it. I will recommend you to try to push   ae1 interface config first then post successful commit, try to add sub-interface under it.

M

ae1 was already created before.

I just now discovered that antivirus and thread prevention DB are not aligned between Panorama and the device.

I read this could be the problem even if is not directly connected with the interface.

I'm working to align all the software

I'll let you know
