IPSEC Tunnel down on GNS3

cancel
Showing results for
Show  only  | Search instead for
Did you mean:

IPSEC Tunnel down on GNS3

L1 Bithead

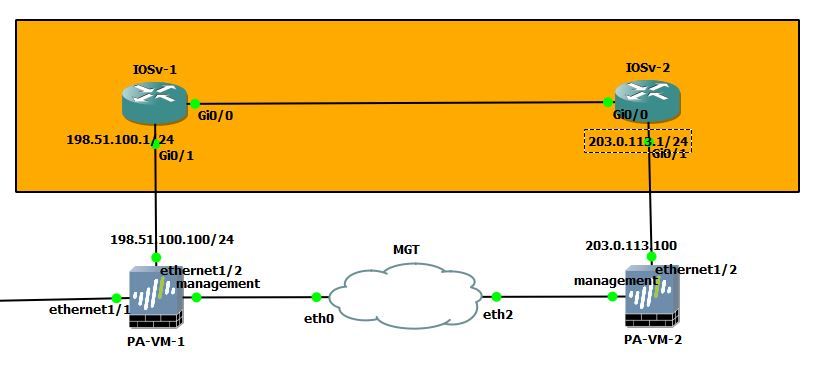

Hi- I am trying to implement exactly this article for ipsec - https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClGkCAK

However the tunnel is not coming up, I am not sure if its gns issue or my configuration?

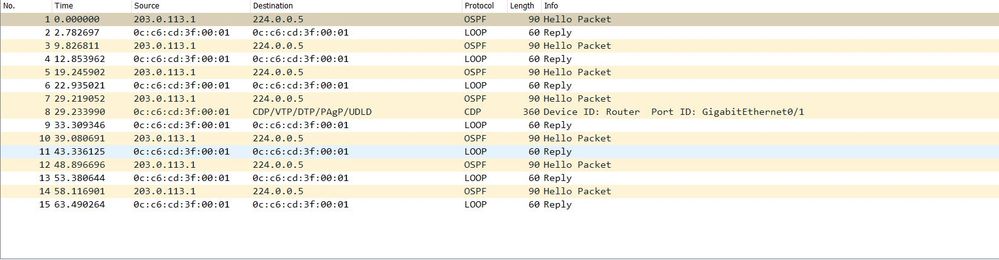

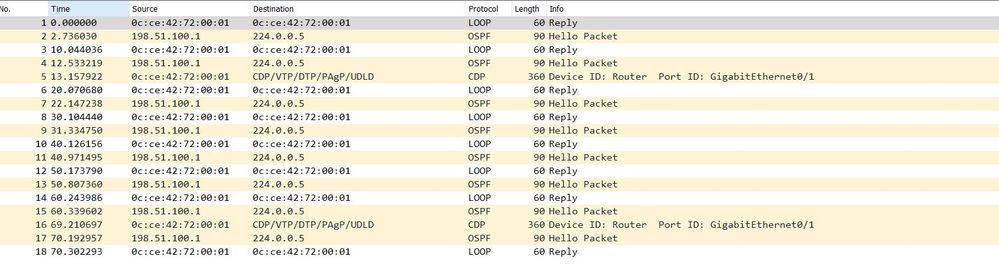

Wireshark packet drop also attached













Please note you are posting a public message where community members and experts can provide assistance. Sharing private information such as serial numbers or company information is not recommended.
1 ACCEPTED SOLUTION

Accepted Solutions

Cyber Elite
Cyber Elite

Hello,

What do the system logs show for the VPN tunnel? This is where they are logged. I'm thinking either there is a configuration error or something is blocking the traffic somewhere. Check the traffic logs to see if the packets are making it and/or getting dropped/blocked by the PAN.

Regards,

View solution in original post

5 REPLIES 5

Cyber Elite
Cyber Elite

Hello,

What do the system logs show for the VPN tunnel? This is where they are logged. I'm thinking either there is a configuration error or something is blocking the traffic somewhere. Check the traffic logs to see if the packets are making it and/or getting dropped/blocked by the PAN.

Regards,

L2 Linker

Hi @Sulaiman.Ashraf



I agree with @OtakarKlier. You can check the logs (system & traffic) to understand why the connection is not getting established.

The other thing which I would suggest is to take the packet capture with the IPSec traffic. If required, you can run the test commands on the CLI to initiate the connection at the same time when you are capturing packets. You can follow this article

Another article which is helpful - How to check Status, Clear, Restore, and Monitor an IPSec VPN Tunnel



Regards,

L1 Bithead

Thanks for response, I have been looking at logs and connectivity, I could not find any issue,

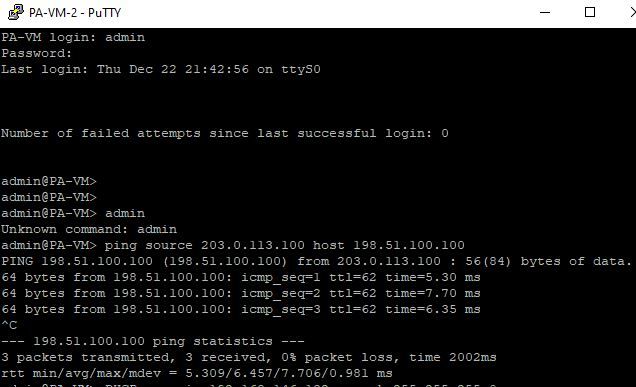

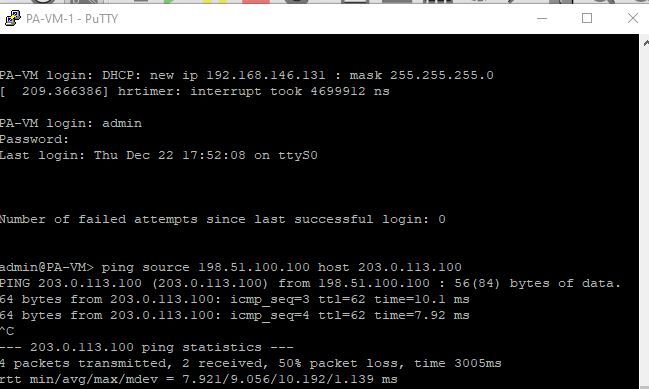

Can you please review attached cli logs and packet captures, let me know if that helps in  finding the issue?

Cyber Elite
Cyber Elite

Hello,

I think its in your tunnel config somewhere. Double check to make sure every setting is identical on both sides.

Regards,
