Service route in panorama.

Reply
Highlighted
L4 Transporter

Service route in panorama.

Dear Team,



I have two interfaces configured in my panorama:

1-management interface

2 -ethernet1/1.



for software and dynamic updates by default, my traffic is going via management interface. I want to change the service route through ethernet1/1 but I am not able to see any option to change the service route. below is the snapshot.




can anyone help with this where I can find this option?





Highlighted
Cyber Elite

Re: Service route in panorama.

You are in the right track.

You should see

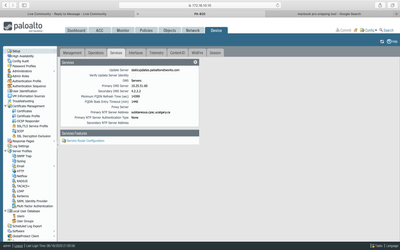

Screen Shot 2020-06-28 at 9.23.31 AM.png

Pa has role based access control.

so you need to have rights to see all the info on gui

Can you log into this PA with admin username and then try?





MP
Highlighted
L4 Transporter

Re: Service route in panorama.

@MP18Yes, i have the super admin rights.



Is there any way to change the service route through the CLI.

Highlighted
Cyber Elite

Re: Service route in panorama.



Yes you can change it via cli.

Please use below command from config mode



# set deviceconfig system route service ??



example

set deviceconfig system route service paloalto-networks-services source address   10.0.10.1/24





where source address can be of data plane interface



MP
Highlighted
L4 Transporter

Re: Service route in panorama.

@MP18Thank you for your reply,



I have checked this command is only working in Palo alto. when I check the same command in panorama it is not working.



Highlighted
Cyber Elite

Re: Service route in panorama.

My bad.

Need morning coffee.



As Panorama is only for management and no data traffic goes via Panorama so that's the reason there is no service route config there

So this is by design you do not see service route config in GUI.

MP
Highlighted
L4 Transporter

Re: Service route in panorama.

@MP18

Thanks for the reply, it means we can not change the default behavior of the panorama to update the software or dynamic updates through the data plane interface(ethernet 1/1) interface.

Highlighted
Cyber Elite

Re: Service route in panorama.

Yes we can not change the default behavior.

MP
Highlighted
L4 Transporter

Re: Service route in panorama.

@MP18thanks for the reply.

Highlighted
L4 Transporter

Re: Service route in panorama.

@MP18

Hello , one last question have any documents for this, because i have searched everywhere but couldn't find anything.
