User-ID Agent Connecting Status

[Alpalo]

Hello team

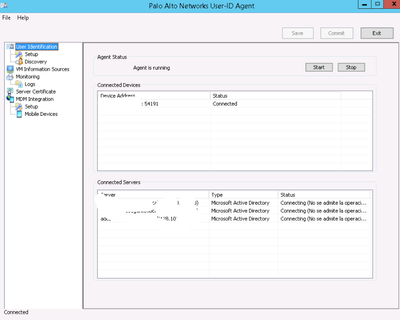

 I am facing an issue with User ID and AD .  It continuously stays on connecting... however it seems that some user is assigning. Can someone help me?

10/19/21 10:47:24:139[ Info 2357]: ------------Service is being started------------
10/19/21 10:47:24:139[ Info 2364]: Os version is 6.2.0.
10/19/21 10:47:24:139[ Info 685]: Load debug log level Info.
10/19/21 10:47:24:139[ Info 699]: IP user mapping sending interval is 100 ms. Add 'SendInterval' with value range [10, 200] under SOFTWARE\Wow6432Node\Palo Alto Networks\User-ID Agent\Log
10/19/21 10:47:24:139[ Info 634]: Service version is 9.1.2.9.
10/19/21 10:47:24:139[ Info 702]: Product version is 9.1.2.
10/19/21 10:47:24:139[ Info 1240]: Found 0 ACL config. 0 processed.
10/19/21 10:47:24:139[ Info 1268]: Found 0 VM info source config. 0 processed.
10/19/21 10:47:24:139[ Info 1276]: Found 0 Syslog Profile(s) config.
10/19/21 10:47:24:139[ Info 1338]: Found 3 server config.
10/19/21 10:47:24:139[ Info 1373]: Found 2 include-exclude networks. 2 processed.
10/19/21 10:47:24:139[ Info 1398]: Found 0 custom log format config.
10/19/21 10:47:24:139[ Info 1405]: No xml element servercert.
10/19/21 10:47:24:139[ Info 148]: Load 8 build-in formats and 0 custom formats for parsing security log.
10/19/21 10:47:24:139[ Info 345]: DC security log and session query threads for server xxxxl(index 0) are started.
10/19/21 10:47:24:139[ Info 345]: DC security log and session query threads for server xxxx(index 1) are started.
10/19/21 10:47:24:139[ Info 345]: DC security log and session query threads for server xxxx(index 2) are started.
10/19/21 10:47:24:139[ Info 799]: Active Directory gets started.
10/19/21 10:47:24:139[ Info 834]: User-ID VM monitor service started.
10/19/21 10:47:24:154[ Info 1313]: Loaded 367 ip user mappings from file (UserIpMap.txt), took 0 seconds
10/19/21 10:47:24:154[ Warn 1237]: Unsupported file format for MachineIpMap.txt. We support ANSI and UTF-8 format.
10/19/21 10:47:24:154[Error 115]: Cannot open security log for DC xxxx - No se admite la operación solicitada.

10/19/21 10:47:24:154[Error 115]: Cannot open security log for DC xxxx - No se admite la operación solicitada.

10/19/21 10:47:24:154[Error 115]: Cannot open security log for DC xxxxl - No se admite la operación solicitada.

[kiwi · Accepted solution]

Hi @Alpalo ,

I've seen similar UIA connectivity issues to domain controllers and they were directly related to patch installation.  Have you recently installed CVE patch related to CVE-2021-31958 ?

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA14u0000001Vcg

Try setting your debug level to "Debug" level to get more verbose logging information (I think it's currently set to Informational).

Cheers,

-Kiwi.
