Globalprotect 5.2.5 popup message

[a.jones]

Hi All,

Having just deployed version 5.2.5 when I connect on Globalprotect I get a pop up stating "The network connection is unreliable and GlobalProtect reconnected using an alternate method......". This did not appear before and was not present on 5.2.4. We need version 5.2.5 for O365 split tunneling, there is an issue using 5.2.3 and 5.2.4.

I have noticed I'm connecting as SSL even though the gateway is configured for "enable Ipsec" and the rule has Ipsec in it's app field.

Is there a way to remove this notification (having looked I can't see anything obvious)? I will shortly be pushing this client out to 3500 users.

Regards

Adrian

[emr_1 · Accepted solution]

@a.jones
At this point, disabling IPSEC mode under GlobalProtect Gateway config is the way to remove pop-up.

I already opened ticket and TAC said he will fix the issue in GP 5.2.6, and new option will be available under Agent Configuration in GlobalProtect portal.

Hope this will help you.

Regards,

Emr

[a.jones]

Thanks. I had disabled and it cleared. Pain but I'll have to live with it until next version.

Regards

Adrian

[fb-pan]

Thanks for sharing this information Emr

I hope 5.2.6 will be out soon.

[emr_1]

Hi All,

Just to share the latest info with you all.

GP Agent v5.2.5-c84 was released instead of v5.2.6.

You can find the addressed issue in release note:

===

https://docs.paloaltonetworks.com/globalprotect/5-2/globalprotect-app-release-notes/gp-app-release-i...

GPC-12568

Fixed an issue where, when the Connect with SSL Only option was specified as the GlobalProtect connection setting, the GlobalProtect app displayed the notification The network connection is unreliable and GlobalProtect reconnected using an alternate method. You may experience slowness when accessing the internet or business applications. when the GlobalProtect connection cannot be established as IPSec and then falls back to SSL.

===

In addition to above, after you update your content signature, you can find new option in App Configuration under GlobalProtect portal setting, called 'Display IPSec to SSL Fallback Notification'.

Default value is 'yes'

Regards,

Emr

[SteveBallantyne]

As someone who just upgraded to 5.2.6 I can tell you that upgrading doesn't fix it! 🙂

I am tired of being asked what this message means. So I am throwing in the towel and unchecking IPSec.

PA support - please fix it. Super annoying.

[fb-pan]

Hi

afaik you have to disable it in the Portal > Agent > App

Per default it's still enabled.

Think this switch is only working with 5.2.5-c84 and 5.2.6.

[mountainfun]

Still seeing this after activating 5.2.6 from PAN-OS 8.1.6 and running GlobalProtect Version 5.2.6-87.

To change this on the Portal, go to Network tab>GlobalProtect>Portals>choose the Portal>from GlobalProtect Portal Configuration screen, click on Agent>select relevant option under Configs>click on App tab>the option is called "Display IPSec to SSL Fallback Notification" by default this is set to Yes, change to No>click on OK>click on OK again>repeat for any other Portals where this change is required>Commit changes to Panorama or to the Firewall as required to suppress message as needed.

As mentioned from user Emr_1 to suppress this message, this needs to be disabled from the Gateway, from Network tab>GlobalProtect>Gateways>Agent>under Tunnel Settings tab, uncheck the Enable IPSec>repeat for any other Gateways where this change is required>Commit changes to Panorama or to the Firewall as required to suppress message as needed.

Another point to consider, which I ran into, is whether or not you are having issues with GlobalProtect traffic dropping IPSec connections, using UDP Port 4501.

When GlobalProtect client will try to connect, first, it will try to connect over IPSec, using UDP, the faster protocol, if this fails, then GlobalProtect will fallback to SSL, over TCP, the slower protocol. The message that is shown, is because GlobalProtect client is failing back from IPSec to SSL for the VPN connection.

Performed a collect of GPClient logs from Windows laptop and searched in PANGPS.log for "Trying to do IPsec" found that this was generating failed to receive keep alive, then followed by Disconnect udp socket, then few lines down we see ipsec failed to start then we see IPSec fallback reason is IPSec connection failed.

Upon further investigation on the Traffic Monitor, we saw that traffic to UDP port 4501 is being denied for the GlobalProtect security policy, as a result, the IPSec Tunnel will fail and fallback to SSL will occur.

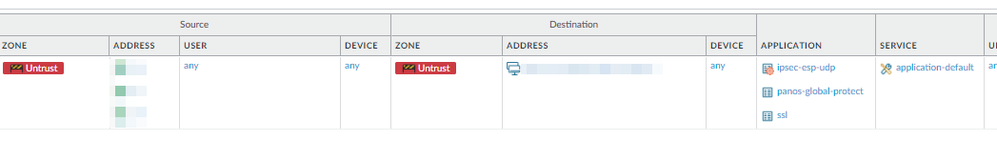

Proceeded to modify the GlobalProtect Security Policy that we had in place, added in the IPSec application, then changed the GlobalProtect>Gateways>Agent>under Tunnel Settings tab, re-checked the Enable IPSec>Committed changes.

This time, when my client connected to the GlobalProtect VPN, I saw IPSec as the Connection type, no longer seeing Notification Warning message. Repeated the same process for my other Gateways, left Portal to have Notification for Fallback set to No and this worked.

Need to keep in mind why the message is appearing, as sometimes this can be an indication of an underlying configuration issue that you should focus on, so as to provide an optimal user experience. Thanks to Harish Krishan, Technical Support Engineer from Palo Alto for help working through this scenario.

[JoergSchuetter]

Hello

We still have users who receive the warning. Portal config was adjusted, GP is 5.2.5-c84.

The agent log (PanGPA.log) holds the following line:

<display-tunnel-fallback-notification>no</display-tunnel-fallback-notification>

So I would assume, everythig is configured as required.

Any idea on this?

[Danross]

I've just updated to 5.2.5-c84 and I'm getting the message as others have reported.  I did find a solution that was presented on another forum.  In a nut shell it appears that there needs to be a u-turn nat to the public IP for GP portal address to udp 4501.  Detailed here: GlobalProtect: how to disable alert that connection is unrealiable : paloaltonetworks (reddit.com)
