GLOBALPROTECT WITH AN INTERNAL IP BEHIND INTERNET DEVICE

GlobalProtect  set up on a firewall with an internal IP address sitting behind an edge Internet device



Internet Router (2.2.2.2/24) > Internal Network > PAN ( 192.168.0.2/24)



I'm using OS 9.0.13



internally i can connect (for testing purpose), but externally I get error server certificate error.  I have associated certificate with FQDN but still not working.



Any help please ?


Accepted Solutions
spiyaa
L1 Bithead

@BPry

I found this link to assign "Server certificate", maybe this the problem but i cannot see this option in version 9.x



https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClHyCAK

View solution in original post


All Replies
BPry
Cyber Elite

@spiyaa,

Since you're getting a certificate error, what does your actual certificate look like? My guess is you likely haven't setup SANs correctly

spiyaa
L1 Bithead

@BPry



Thanks for looking into it

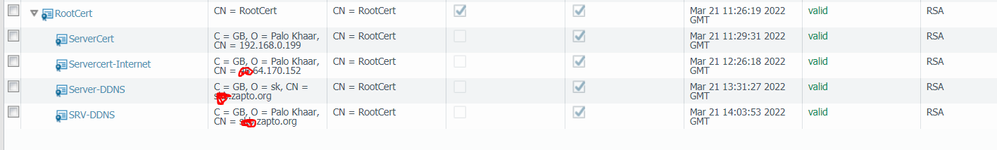

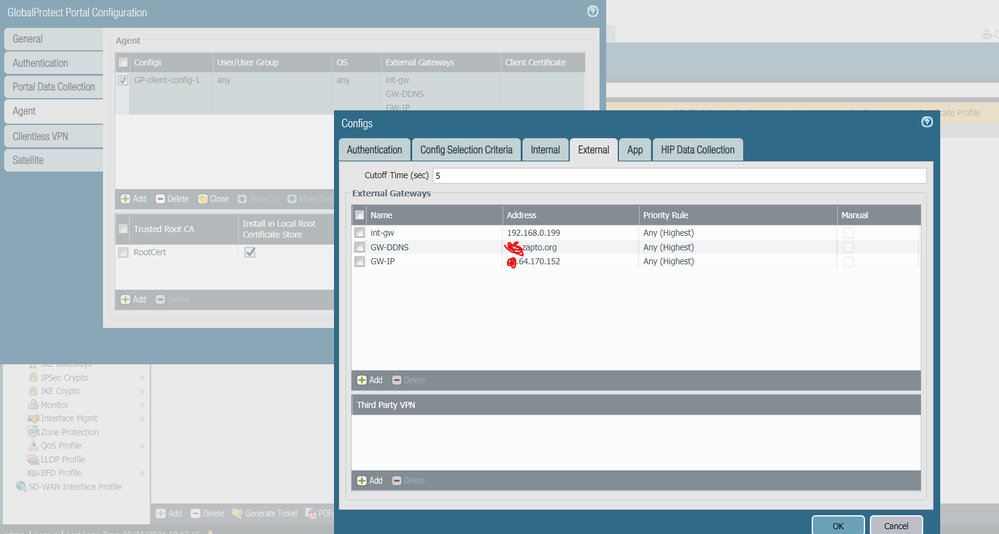

My screenshots below, though i can connect using 192.168.0.199, but error when using public ip or DDNS fqdn certcerts.PNGGW.PNG

spiyaa
L1 Bithead

@BPry

I found this link to assign "Server certificate", maybe this the problem but i cannot see this option in version 9.x



https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClHyCAK

View solution in original post
