GP connection issues while in Mexicvo and Dubai

L2 Linker

We have multipe clients in Mexico and Dubai that are having issues with the GP client (5.2.9-35) connecting.  I have a ticket opened but figured I woudl post as well.

16 REPLIES 16

L2 Linker

Apologies on the Typo.

Cyber Elite
Cyber Elite

@PNevs,

What error message are they actually receiving on the agent? Have you looked at the PanGPS logs to verify what the service logs are actually saying? Do you have any restrictions on your portals/gateways that would limit the client from connecting from Mexico or Dubai?

Thanks for the reply BP. I am trying to get all that data you reference now. So far we only have that they cannot connect.  I have not even thought about any restrictions. I will look into that.

L1 Bithead

Hi there, you may get pangps log according to this step

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClaLCAS



then you should be able to narrow down the issue if it's due to network issues , certificates, gateway issues

you can paste the error here so we can understand more detailed about the issue that you're experiencing

L2 Linker

Thanks so much. Agreed. I need to pull the logs, just getting someone to do it now will be the challenge.  Working on that now.

L2 Linker

Thanks for the feedback. I was finally able to get some logging data from the GP client and a response from the Engineer. We are only seeing this in one region. We have a US region that is working but a Canadian region that is not.  Logging data below.



(P5432-T4436)Debug(5850): 04/06/22 10:21:27:177 NetworkDiscoverThread: network type is external.
(P5432-T4436)Debug(5936): 04/06/22 10:21:27:177 NetworkDiscoverThread: Discover external network.
(P5432-T4436)Debug( 528): 04/06/22 10:21:27:177 Discover external gateway: gateway count is 3, cutoff time is 5, bJustResumed=0
(P5432-T4436)Debug( 679): 04/06/22 10:21:27:178 gateway 0 of canada-west-dentons.gpo5yo5sjo5j.gw.gpcloudservice.com is manual select only, will not be in rediscover list
(P5432-T4436)Debug( 679): 04/06/22 10:21:27:178 gateway 1 of canada-central-dentons.gpo5yo5sjo5j.gw.gpcloudservice.com is manual select only, will not be in rediscover list
(P5432-T4436)Debug( 679): 04/06/22 10:21:27:178 gateway 2 of canada-east-dentons.gpo5yo5sjo5j.gw.gpcloudservice.com is manual select only, will not be in rediscover list
(P5432-T4436)Debug( 714): 04/06/22 10:21:27:178 There is no gateway suitable to discovery
(P5432-T4436)Error(6044): 04/06/22 10:21:27:178 NetworkDiscoverThread: failed to discover external network.
(P5432-T4436)Debug(6068): 04/06/22 10:21:27:178 Network discovery failed, set error as The network connection is unreachable or the gateway is unresponsive. Check the network connection and reconnect.
(P5432-T4436)Debug(7064): 04/06/22 10:21:27:178 --Set state to Disconnected


L1 Bithead

try GP 5.2.11 is a good version

L1 Bithead

Also you need to add Mexico and Dubai into your GP gateway so they can connect.

I need to review the doc on fixes to that version. Maybe that's an issue. We were thinking that as well but waiting to hear back from PA on the log review. That has been a challenge at this point.

That's what we have been trying to identify from PA. Are we missing a GEO setting somewhere that may be blocking as we have US clients that have no issues so I don't think its the GP client config.

Also I recommend  to do Wireshark captures on the PANGP interface and the wire\wifi Interface too

do Dumps from GP with Wiresharks

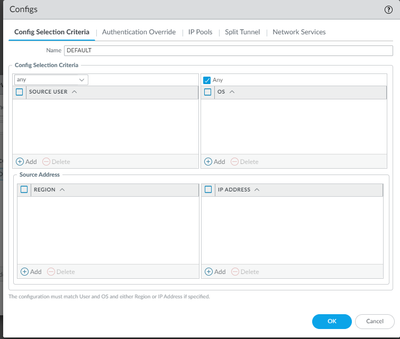

Our regions are set to  any.




That is a challenge, Asking our clients to do that. I was hoping the GP logs would direct us towards a fix.
