A connection issue between PA and SW

L2 Linker

Hi, PA port e1/2 is connected to switch port f1/5(L3). Both devices can see each other's ip and mac address. The Virtual router and Security zone and Magagement profile Ping are configured. but both devices cannot ping each other. Did I miss some step? Thank you



2 ACCEPTED SOLUTIONS

Accepted Solutions

@DavidyPalo



Make sure Ping is allowed to PA interface under Network and Interface MGMT.



Regards

MP

View solution in original post

Cyber Elite
Cyber Elite

Thank you for feedback @DavidyPalo



I am sorry, I would like to confirm one point. In your first post you mentioned: "The Virtual router and Security zone and Management profile Ping are configured." Since you mentioned it ping is working after creating new management profile, does it mean ping was not allowed in your previous management profile or it was not applied to interface from the beginning?



Regarding overriding, the intrazone-default rule, could you please click on in intrazone-default and navigate to the bottom of the page and click on overrride button?






Thank you and Regards

Pavel



Help the community: Like helpful comments and mark solutions.

View solution in original post

10 REPLIES 10

Cyber Elite
Cyber Elite

Thank you for post @DavidyPalo



By default Firewall is using management interface for ping. If you want to verify reachability of data plane interface you can change source: ping source <int 1/2 ip address> host <destination ip>



Kind Regards

Pavel

Help the community: Like helpful comments and mark solutions.

L2 Linker

Thank you for your reply! Now PA can ping SW, but the SW cannot ping PA. Maybe its default router configuration issue?

PA e1/2 10.200.255.1/24 ------------f1/5 SW 10.200.255.2/24

Below is virtual router vRTR-INET-Core:




Cyber Elite
Cyber Elite

Thank you for reply @DavidyPalo



Since you can ping Switch from Firewall and it is directly connected link, there should be no issue with routing. Have you checked Firewall's Traffic log to confirm ICMP arrives Firewall? Unless you have custom rule, this should hit by default: intrazone-default rule. Make sure that logging is enabled under: Actions > Log Setting > Log at session end, otherwise you will not see any logs hitting this rule.

Note: I can see that you have not configured Interface for static route. It is not mandatory if you have next hop, however if you want to make sure that next hop is reachable over certain interface you can hardcode it.



Kind Regards

Pavel

Help the community: Like helpful comments and mark solutions.

L2 Linker

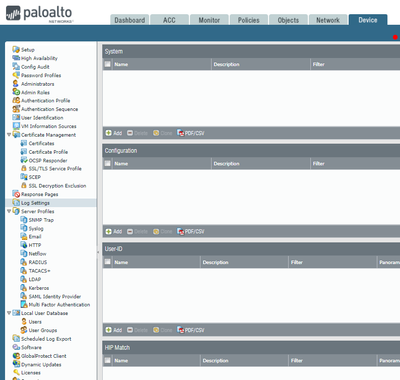

Hi PaveIK, where to enable Traffic Log?

under: Actions > Log Setting > Log , it cannot be found.






Cyber Elite
Cyber Elite

Thank you for reply @DavidyPalo

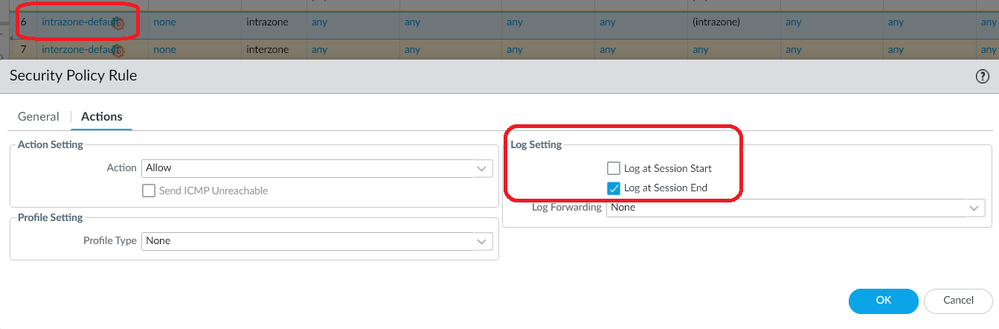

it is under security rule:


Kind Regards

Pavel



Help the community: Like helpful comments and mark solutions.

L2 Linker

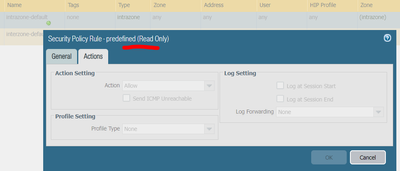

Why my PA show read-only? I did not setup Panorama




Cyber Elite
Cyber Elite

Hello @DavidyPalo

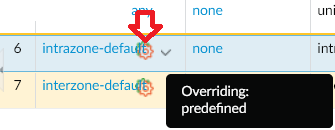

could you click on green gear icon and press override?


then you will be able to edit and commit the change.



Kind Regards

Pavel

Help the community: Like helpful comments and mark solutions.

@DavidyPalo



Make sure Ping is allowed to PA interface under Network and Interface MGMT.



Regards

MP

Cyber Elite
Cyber Elite

Thank you for feedback @DavidyPalo



I am sorry, I would like to confirm one point. In your first post you mentioned: "The Virtual router and Security zone and Management profile Ping are configured." Since you mentioned it ping is working after creating new management profile, does it mean ping was not allowed in your previous management profile or it was not applied to interface from the beginning?



Regarding overriding, the intrazone-default rule, could you please click on in intrazone-default and navigate to the bottom of the page and click on overrride button?






Thank you and Regards

Pavel



Help the community: Like helpful comments and mark solutions.
