Captive Portal SSO w/ Okta - "User Authenticated"

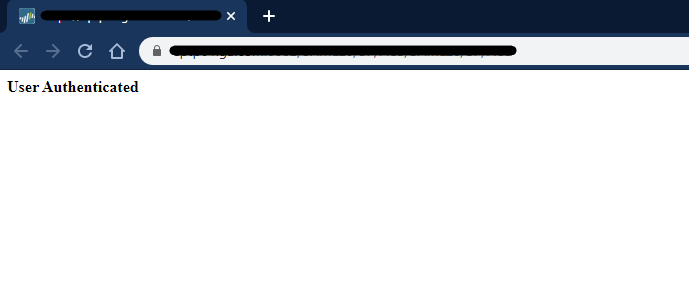

We've implemented Okta SAML SSO with our layer-3 Captive Portal redirect page for IP-User mapping. The solution works, but users are landing on a "User Authenticated" web page, rather than the website they originally browsed to. Users now have to re-browse to the website first landed on, or browsed to to access the site. I figured SAML SSO would allow a transparent authentication to occur and return the requested webpage to the user. Anyone have this issue?2020-02-19 11_54_24-Program Manager.png

Highlighted
L7 Applicator

Re: Captive Portal SSO w/ Okta - "User Authenticated"

is your portal set up as redirect or transparent ?

reaper - PANgurus.com
I drink and I know things
Highlighted
L1 Bithead

Re: Captive Portal SSO w/ Okta - "User Authenticated"

The configuration is set to redirect

This was actually occurring due to the redirect host being set to the hostname, and not the FQDN. Example: host.domain.tld

All fixed.

Highlighted
L4 Transporter

Re: Captive Portal SSO w/ Okta - "User Authenticated"

@Greg_FreyI am facing similar challenge where the Okta response is stopping at "<firewall ip>:6081/SAML20/SP/ACS" page. I did change the redirect host to FQDN under Captive Portal page. Do you need similar settings on the Okta side? Can you please help with the Okta settings?

Highlighted
L1 Bithead

Re: Captive Portal SSO w/ Okta - "User Authenticated"

The URL needs to match. In this case, the FQDN was similar on both the PanOS configuration for the redirect host, and the Okta URL.


Redirect Host: <FQDN>
Okta: <FQDN>:6081/SAML20/SP/ACS

Highlighted
L4 Transporter

Re: Captive Portal SSO w/ Okta - "User Authenticated"

@Greg_FreyIs the port 6081? The SAML metadata on the firewall as well as Okta captive portal app shows 6082.
