change default static route

L3 Networker

Hi.



ethernet 1/1 > DHCP

ethernet 1/2 > Static



i want to dst. 172.16.1.x next hop ethernet 1/1 ///// dst. 172.16..2.x next top ethernet 1/2 for change.

not use pbf rule.

1 accepted solution

Accepted Solutions

Cyber Elite
Cyber Elite

just go ahead and add those 2 routes

- dst. 172.16.1.0/24 next hop ethernet 1/1

- dst. 172.16.2.0/24 next top ethernet 1/2

in routing the smaller subnet gets priority over the larger subnet, regardless of the metric



so 172.16.2.0/24 - eth1/2 metric 50 will still be routed to eth1/2 even if 0.0.0.0/0 - eth1/1 metric 10

Tom Piens
PANgurus - Strata specialist; config reviews, policy optimization

View solution in original post

2 REPLIES 2

Community Team Member

`Hi @qmso475 ,

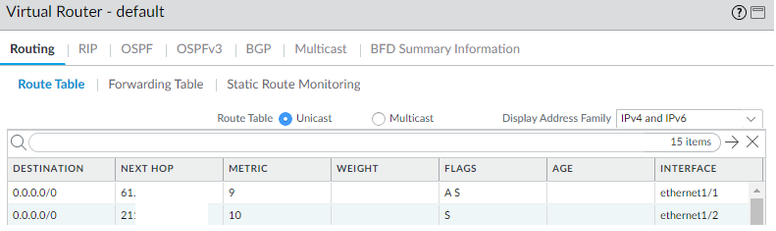

Looks like you have a couple of defaults that are statically created and one of the 61. is active with the lower metric. Are you looking to replace them with two new routes 172.16.1 (primary) and 172.16.2 (backup)?

LIVEcommunity team member
Stay Secure,
Jay
Don't forget to Like items if a post is helpful to you!

Please help out other users and “Accept as Solution” if a post helps solve your problem !

Read more about how and why to accept solutions.

Cyber Elite
Cyber Elite

just go ahead and add those 2 routes

- dst. 172.16.1.0/24 next hop ethernet 1/1

- dst. 172.16.2.0/24 next top ethernet 1/2

in routing the smaller subnet gets priority over the larger subnet, regardless of the metric



so 172.16.2.0/24 - eth1/2 metric 50 will still be routed to eth1/2 even if 0.0.0.0/0 - eth1/1 metric 10

Tom Piens
PANgurus - Strata specialist; config reviews, policy optimization
