Destination NAT Error

L2 Linker

Hello All,

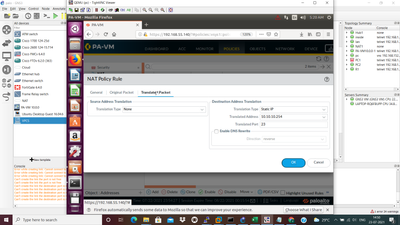

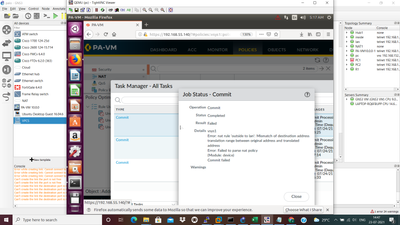

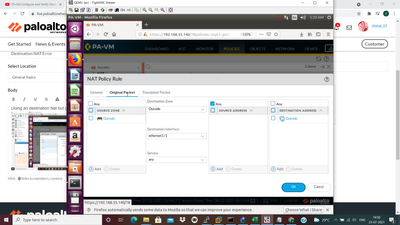

Doing an destination Nat but getting below Error. Could anyone please help me. Also pls find below my nat rule










Please note : Ethernet 1/1 is my Outside Interface



2 ACCEPTED SOLUTIONS

Accepted Solutions

L3 Networker

Dear Vishal

Please find the below article on how to configure Destination NAT

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000PMtuCAG

View solution in original post

L3 Networker

Hi,



As per NAT configuration The destination address (shown above)  is NOT actually an address, but an address object with name as IP address as shown.So change the name, and change address to be a single IP or with a /32 to resolve this issue.



Regards,

Suresh





Sureshreddymudhireddy

View solution in original post

3 REPLIES 3

L3 Networker

Dear Vishal

Please find the below article on how to configure Destination NAT

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000PMtuCAG

View solution in original post

L3 Networker

Hi,



As per NAT configuration The destination address (shown above)  is NOT actually an address, but an address object with name as IP address as shown.So change the name, and change address to be a single IP or with a /32 to resolve this issue.



Regards,

Suresh





Sureshreddymudhireddy

View solution in original post

L2 Linker

Thanks Farhan and Suresh for your reply.



But in my scenerio i have configured WAN ip 182.72.153.82/30 on outside interface port ethernet1/1 and my isp has given 182.71.48.176/29 Lan IP using this ip pool i have to configure destination nat. Example

182.71.48.177/32 will assign to 10.10.10.1/32

182.71.48.178/32 will assign to 192.168.10.1/32



What configuration i need to do to achieve this.



Please help
