Geo Blocking problem

Reply
L1 Bithead

Geo Blocking problem




Hi, I am using Palo Alto (PA) firewalls hosting Software Version: 8.1.17 in AWS and need to configure Geo-Blocking so that only GB (United Kingdom) requests are permitted and all other requests denied.



The infrastructure setup is as follows:

FQDN => Internet Load Balancer => Palo Alto => Internal Load Balancer => EC2 instance



I have set up "security" policy 1 under the "policies" tab with the 2 x source addresses which belong to the subnets attached to the internet load balancer. See below:



security policy source 1.PNG



I then set up a second security policy 2 with only "GB" in the source address and enabled the "negate" option (see below). I then placed policy 2 after policy 1 expecting all traffic other than GB to be blocked. This did not work because traffic permitted in rule 1 is obviously forwarding the load balancer IP and not that of the actual source address of the requestor.



security policy source 2.PNG



There is an x-forwarded for option (see below) but do I simply enable both checkboxes? Is there further configuration change required? Any help would be much appreciated.






Thanks.

Cyber Elite

@Fraz_Mahmud



Regarding Security policy to allow traffic only from GB  you can configure this

Source region GB  and destination address which you want and check they negate and then click on action as drop.



This will block traffic from all other countries other than GB for your destination address.

After this policy create another policy and put source IP which you want to allow and put the destination ip address which you want and

action as allow.



Regards

MP
Cyber Elite

@Fraz_Mahmud,

You'll want to be running PAN-OS 10 and use the following feature to make this work as best as possible.



https://docs.paloaltonetworks.com/pan-os/10-0/pan-os-admin/policy/identify-users-connected-through-a...

L1 Bithead



Thanks for the info.

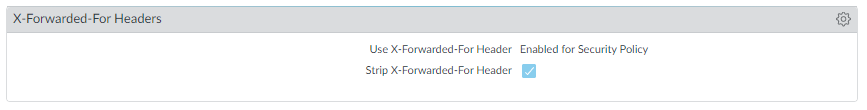

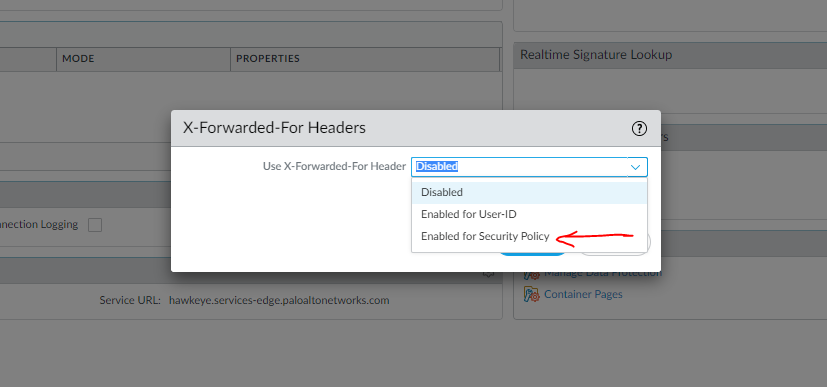

We've set up a dummy Palo Alto in a test environment with PAN-OS 10 to check out the options. See below.



image (3).pngimage (4).png


I was hoping I wouldn't have to upgrade the PAN-OS but looks like it may be the only solution. So by enabling the x-forwarded for security policy option, it will be at root level on the PA so may affect other rules. I will have to go through all other rules before making changes. It would have been great if you were able to specify explicit security rules to which the x-forwarded option could be explicitly applied.



Are you aware of any breaking changes upgrading from PAN-OS version 8 to 10?



Thanks

L1 Bithead

@BPry that last response was meant for you. Thanks mate. I keep getting html errors when posting which is quite frustrating.

L1 Bithead


@MP18

Thanks for the help. I'm not entirely sure this will work reflecting on it? The URL that incoming traffic is received via is DNSd to the AWS classic internet load balancer. So all traffic must come via the load balancer, then traverse the Palo Alto and then be blocked if non-GB. That's why the first rule allows all traffic via the load balancer and i set up the second rule to block all non-GB traffic. I may have misunderstood your suggestion so please feel free to correct me. I am in no way a network/firewall expert so open to all suggestions. It would have been easier if i could have blocked all traffic excluding GB at the load balancer.
