Fixing Crypto IPSec and IKE Gateways for Tunnels- Missing?

I am working on a new project with an ASA config I have used in a previous project.  I am attempting to clean up the IPSec Tunnels as it's saying I need to apply new crypto profile to the outside map.  However, I do not see where it shows the existing crypto profiles anymore.  Is anyone else experiencing this issue?


Accepted Solutions
Highlighted
L4 Transporter

The tab looks like below screenshot.  If it was there few days ago but it is not, I would suggest you restart your Expedition VM and close all your browser and re-launch the GUI, try different browser as well.



Screen Shot 2020-07-22 at 12.34.10 PM.png

View solution in original post

Highlighted
L1 Bithead

I restarted the VM and my tabs are back.  Thanks!

View solution in original post


All Replies
Highlighted
L4 Transporter

Hello @keikenberry

Please review configuration under Network-> VPN section as attached screenshot, most likely you need to re-attache the IKE crypto profile to the IKE gateway and review the IPsec crypto profile of each VPN tunnel.



Screen Shot 2020-07-22 at 12.12.52 PM.png





Highlighted
L1 Bithead

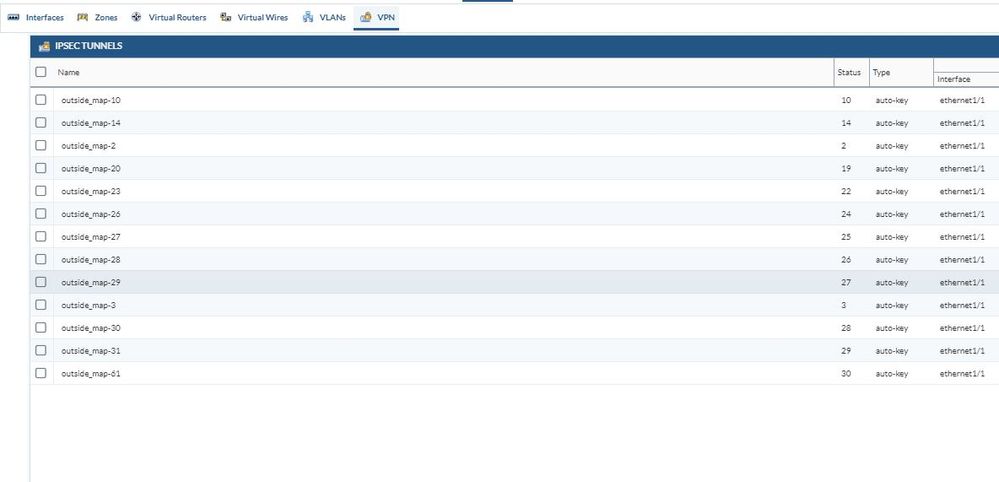

Thank you @lychiang .  That is the tab I am looking for, but for some reason it's no longer there.  Any suggestions?  ExpeditionIKEGateway7.22.2020.JPG

Highlighted
L4 Transporter

On the left side panel of the screen you show me , there are two tabs, you are currently in the first tab- IPsec Tunnel tab, switch to 2nd tab- "Network Profile" tab , you will see all IKE crypto , IKE gateway, IPsec Crypto configuration, etc there.

Highlighted
L1 Bithead

The tabs are not on the left side of the panel.  This is why I am perplexed, because it was there a couple of days ago, but now it's not.

Highlighted
L1 Bithead


Highlighted
L4 Transporter

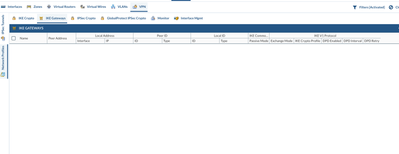

The tab looks like below screenshot.  If it was there few days ago but it is not, I would suggest you restart your Expedition VM and close all your browser and re-launch the GUI, try different browser as well.



Screen Shot 2020-07-22 at 12.34.10 PM.png

View solution in original post

Highlighted
L1 Bithead

I restarted the VM and my tabs are back.  Thanks!

View solution in original post
