AD Groups not working in Policies

[GWynn]

Hello all, this sounds very similar to a previous post I found on here but I could not see a resolution. Very basic. I am trying to block or allow a domain user from the internet, from LAN zone to WAN zone. This will not work if I have domain\user in the Source User Field. I can see a user when I run:

admin@GeoffFirewall> show user ip-user-mapping all

IP Vsys From User IdleTimeout(s) MaxTimeout(s)
--------------------------------------------- ------------------- ------- -------------------------------- -------------- -------------
172.60.1.1 vsys1 Unknown unknown 1 4
172.60.1.4 vsys1 Unknown unknown 3 6
172.60.1.3 vsys1 AD xsoar\geoff.jones 2334 2334
Total: 3 users

If I change the source to ALL then it of course works, either blocking or allowed. Thoughts??

[aleksandar.astardzhiev]

Hi @GWynn ,

Please check the following discussion - https://live.paloaltonetworks.com/t5/next-generation-firewall/gp-amp-saml-wrong-domain-for-group-map...

Can you please provide output of the commands I have shared in my last post in the above discussion?

Also can you share little more background of your setup
- What are you using for AD? On-Prem AD or Azure AD? Are you using LDAP for group mapping?

- What are you using for user-id information? Server Monitor, User-ID agent or GlobalProtect client?

[GWynn]

Hello @aleksandar.astardzhiev thanks. I am using Windows 2012R2 in a lab setup. I am using LDAP for group mapping yes.

I am also using server monitor, and yes in this screenshot it's timed out, it keeps doing that as well but separate issue I think!

admin@GeoffFirewall> show user user-attributes user netbios\user

admin@GeoffFirewall> show user user-attributes user fqdn.local\user

admin@GeoffFirewall> show user user-attributes user xsoar.local\user

admin@GeoffFirewall> show user user-attributes user geoffj@xsoar.local

Primary: xsoar.local\geoff.jones
Alt User Names:
1) geoffj@xsoar.local
2) xsoar.local\geoffj

admin@GeoffFirewall> show user user-attributes user xsoar.local\geoffj

admin@GeoffFirewall> show user user-attributes user xsoar.local\geoffj

admin@GeoffFirewall>

[aleksandar.astardzhiev]

Hi @GWynn ,

What is the output from

> debug user-id dump domain-map

If you look closely you can see that ip-to-user mapping is mapping your username in the format of "xsoar\geoff.jones", but most probably your group-mapping is using the format "xsoar.local\geoff.jones" (with one additional .local)

You could confirm this also by comparing the output from ip-to-user mapping and group mapping

What is the output of the command:

> show user group name "cn=<target-user-group>,cn=users,dc=xsoar,dc=local"

Check also the links for domain-map

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClFnCAK

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClVDCA0

[GWynn]

Hello, I have done this and reset the mappings as per: but now what? It appears the Palo pulls in the FQDN then converts it to Netbios name, I am still not sure how to resolve this?

 debug user-id reset group-mapping all

4. Restart User-ID by using the command

> debug software restart process user-id

5. Confirm that the domain map now exits.

> debug user-id dump domain-map

[GWynn]

admin@GeoffFirewall> debug user-id dump domain-map

xsoar.local : xsoar
vsys1 dc=xsoar,dc=local

admin@GeoffFirewall>

______________________________________________________

admin@GeoffFirewall> show user group name "cn=full-access,cn=users,dc=xsoar,dc=local"

short name: xsoar.local\full-access

source type: ldap
source: xsoar.local-GroupMapping

[1 ] xsoar.local\geoff

admin@GeoffFirewall>

[aleksandar.astardzhiev]

Hi @GWynn

Domain mapping look good now. However probably your group-mapping may need some adjustment.

Can you share your group mapping config?

[GWynn]

You mean this??

[aleksandar.astardzhiev]

Hey @GWynn ,

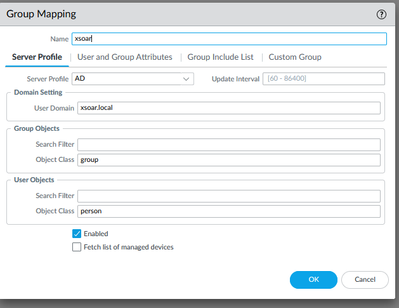

That is needed as well, but in addition - have you define anything in the "Domain" field on the "Server profile" tab? It looks you did, but can you confirm?

[GWynn]

[GWynn]

Thanks @aleksandar.astardzhiev  for your help BTW!

[aleksandar.astardzhiev]

Hey @GWynn ,

I think we are getting closer:

- Domain field in the group mapping is optional. If you add something there it will override the domain that collected by the firewall with the LDAP queries.

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/user-id/map-users-to-groups#id44a39121-660...

(Optional) By default, the User Domain field is blank: the firewall automatically detects the domain names for Active Directory (AD) servers. If you enter a value, it overrides any domain names that the firewall retrieves from the LDAP source. For most configurations, if you need to enter a value, enter the NetBIOS domain name (for example, example not example.com).

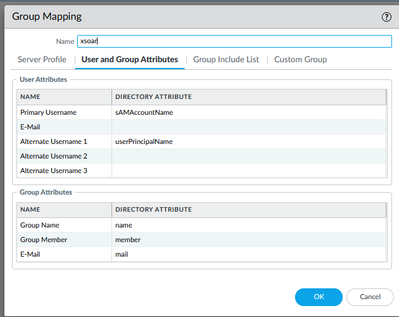

- In addition on the "user and group attributes" you are using the default settings, which tells the user to collect sAMAccountName and userPrincipalName. This can be confirmed by looking at the user attributes that FW is assciating with user

dmin@GeoffFirewall> show user user-attributes user geoffj@xsoar.local


Primary: xsoar.local\geoff.jones
Alt User Names:
1) geoffj@xsoar.local
2) xsoar.local\geoffj

However since you are overriding the domain in the group-mapping that user does no longer matching.

Please try to remove the domain from the group mapping and force group-mapping refresh with

> debug user-id refresh group-mapping all

[GWynn]

OK, I have removed the domain but when I commit I now get this!

• Error: Profile compiler : failed to get PAN sinkhole ip
• (Module: device)
• client device phase 1 failure
• Commit failed

A quick Google has not helped!

[aleksandar.astardzhiev]

@GWynn ,

This has nothing to do with user-id and anything related to what we are trying to fix.

Sinkhole IP is used by  the DNS Security, which is part of the Anti-Spyware profile. I don't recall to have seen such error, but:

- Check what spyware profiles you have created. What are you using for sinkhole ip on the DNS security tab?

- Do you have license for Theat Prevent or DNS Sec? You mentioned this is lab.

- Try to remove any spyware profiles for now, just to be able to push the config for group mapping.

[GWynn]

Lol I know! I am not doing any of this, this really is a basic setup. I haven't created any such profiles. I have a 60 day license for everything but not long left. Thanks I'll take a look! !!!
