Avaya 9611G/4610SW VPN to PA-500

L1 Bithead

Has anyone had success connecting Avaya IP phones via VPN to PA devices?  I am able to complete IKE Phase 1 authentication, but fail Phase 2 due to local/remote proxy IDs not found:

'IKE phase-2 negotiation failed when processing proxy ID. cannot find matching phase-2 tunnel for received proxy ID. received local id: type IPv4_subnet protocol 0 port 0, received remote id: type IPv4_address protocol 0 port 0.' )

I'm not sure where to configure the phase 2 parameters as the phase 1 connection occurs using a Global-Protect Portal/Gateway.  The remote ID matches the address received by the client from the G-P Gateway pool.

If you have had any success with these devices, please help!



First Annapolis


We currently have 5 or 6 9611G models operating without issue.  What model are you working with?

On the phone itself, our settings of note are:

VPN Vendor is set to Other

Encapsulation is set to 4500-4500 (this caused issues if set otherwise)


We never had any success with the 4600 series IP phones, so if you are using these, you may be out of luck.  As long as you have the VPN version of the firmware on the 9600s, you can navigate the settings by pressing * to program and then VPN for the access code, or the default Avaya security code of 27238.

I got you, I was more or less suggesting that just to see if it'd work at all, I understand that's not really a palatable long term solution.

Thanks for the response and the help. That's good to hear you have some working. I was beginning to think it wasn't possible. We are using the 9620L model. I changed the Encapsulation to 4500-4500 as you suggested. It wasn't previously set that way though. Didn't seem to do the trick unfortunately. The firewall shows me the error I have attached. I am not sure how to configure the KeyID in the PA's Global Protect configurations to match the phone. How did you handle that?

Well, I finally threw in the towel. After many days (probably more like weeks) of troubleshooting and testing we just decided to purchase a firewall from a different vendor. From firewall install to working phone was about 3 hours. Too bad I couldn't get this working on Palo Alto, that's one of the reasons we bought them. Thanks to those who offered help.

L1 Bithead

Hi - did you try disabling "Skip Auth on IKE Rekey" under the Gateway --> Client Configuration --> Tunnel Settings

L1 Bithead

Hello, was there every any discussion about making GlobalProtect compatible with the Avaya phones. Just recently tried it with the settings discussed in the forums, but could not get past Phase 1.

L1 Bithead

In order to get the Avaya 96xx IP phones to connect to a GlobalProtect gateway, I found there are certain settings that need to be configured on the phone in order to make it work.  I spent about 3 days going through different configuration setups and what I found was that the phones will auto-negotiate the IKE Phase-1 parameters, but for some reason will not negotiate the Phase-2 parameters automatically.  The solution that worked for me was setting the following parameters in the 46xxsettings.txt file used to program the phones via http.





SET NVSGIP "vphone.yourdomain.com"  (I recommend using FQDN if possible.  Static IP can cause challenges later if ISP changes)



SET NVIKEPSK "your-psk-password-here"

SET NVIKEID "vpnphone@yourdomain.com"  (This is also referred to as the Group Name)




SET NVIKEP2ENCALG 5  (manually sets Phase-2 IKE to aes-256)

SET NVIKEP2AUTHALG 2  (manually sets Phase-2 auth to SHA-1)

SET NVPFSDHGRP 0  (this is important - none of the P2 settings above would have any effect until PFS was disabled)

SET NVIKEP1LIFESEC 86400  (phone defaults to 432,000s, which is 5 days - I set here to 1 day or you can keep default)



This will work with the 96xx series of Avaya IP phones and I can provide additional details/notes in case anyone is looking to connect one over a VPN connection to a GlobalProtect gateway.  I had to migrate the configuration from a Juniper SSG firewall to Palo Alto PA-850 , which provided some challenges since there really is no Avaya documentation or support information available that discusses setting up a VPN phone on the Palo Alto platform.  Good Luck!!

I was interested to read your post about connecting Avaya 96xx phones to a Global Protect Gateway ovewr VPN.


We are looking to do something similar and wondered if you could share your notes and in particular the configuration of the PA gateway?





Any information about this I am trying to do the VPN too

Sure.  Here are some screenshots from my gateway configuration if that helps.  Don't forget you will need rules to allow traffic between zones and you will also need an internal route pointing to the Palo Alto firewall for whatever IP pool you assign that will issue IPs to the phones.

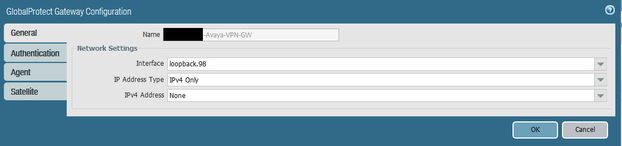

For the interface, I have a public IP assigned to the loopback interface but you could also use your gateway interface, whatever is easier.  I have a block of IPs I use outside of the main gateway interface, which is why I am using loopback.

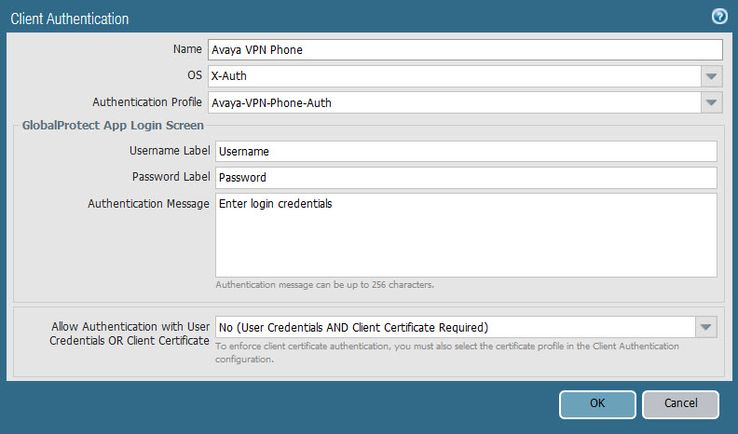

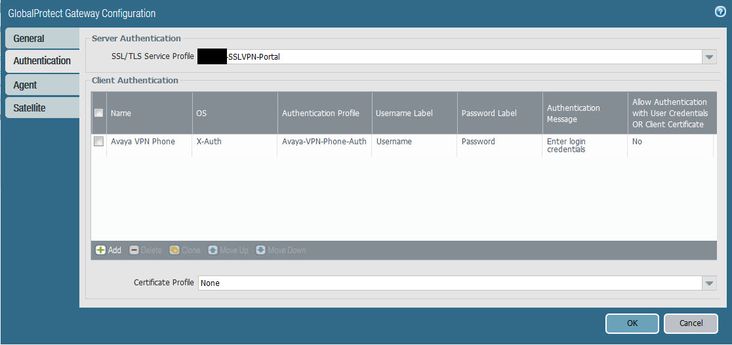

For the authentication page, you can select an existing or create an SSL/TLS Service Profile.  For client authentication, you will want to set the OS type to X-Auth as shown here.  The next screenshot shows the Client Authentication settings.

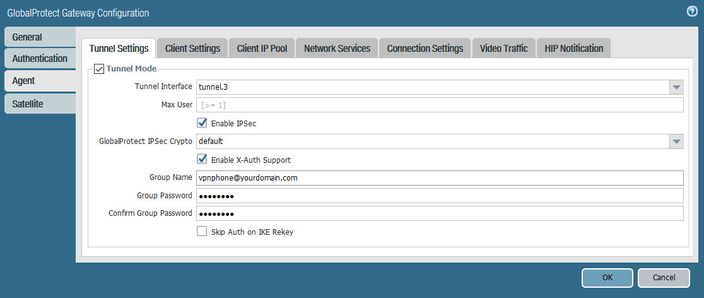

For the GlobalProtect Agent tab, you'll select a tunnel interface, enable IPSec, enable X-Auth support and set the Group Name parameters as shown.  This is what will need to match in the Avaya configuration I detailed in my post above.

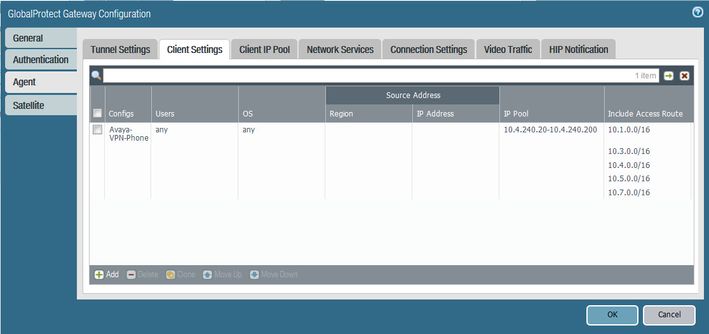

Next click on the Client Settings tab and setup the IP Pool you will assign to the phones.  You'll also need to split-tunnel your internal routes for the Avaya phone system and other user VoIP subnets.

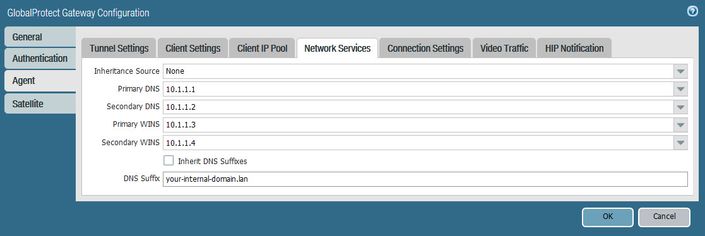

I'm not 100% sure these settings are required unless you are doing FQDN for the Avaya system.  Our Telecom team has everything going to host IPs so we really don't use any DNS on the phones.  I just included for reference.



That's really all there is to it really.  I setup a completely separate GP gateway just for the phones and I have all of my regular VPN users connecting on a different gateway but I also have a pool of public IPs to pull from where as that may not be an option.
