Disk Partition Explanation

L2 Linker

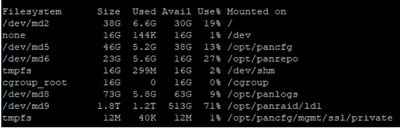

Hello all, is there any guide how to read disk-partition on firewall?

i see that the logs on the firewall is panlogs, but i still don't know what the other partition function. and why the panraid/ldl is high than the other partition






3 REPLIES 3

Community Team Member

Hi @DennyChanditya ,



“Session log storage” is stored in "/opt/panraid/ld1".
And when the logs are full, the old logs will be purged.



Source: https://live.paloaltonetworks.com/t5/general-topics/dev-md9-space-usage-is-82-opt-panraid-ld1/td-p/3...



Kind regards,

-Kiwi.


LIVEcommunity team member, CISSP
Cheers,
Kiwi
Don't forget to hit that Like button if a post is helpful to you!

Hi Kiwi



So what the panlogs partition function  for?



Thanks,

Denny

Community Team Member

Hi @DennyChanditya ,



Good point.



panlogs is home of several logtypes:



KB: https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClSjCAK



It seems opt/panraid/ld1 is the raid log disk.  If you have access to the cli you can check the raid status:



> show system raid detail

> less mp-log raid.log



Kind regards,

-Kiwi.



LIVEcommunity team member, CISSP
Cheers,
Kiwi
Don't forget to hit that Like button if a post is helpful to you!
