Missing some health status of PA-220 managed devices in Panorama
- LIVEcommunity
- Collaboration
- Discussions
- General Topics
- Missing some health status of PA-220 managed devices in Panorama
- Subscribe to RSS Feed
- Mark Topic as New
- Mark Topic as Read
- Float this Topic for Current User
- Printer Friendly Page
- Mark as New
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report This Content
11-01-2020 12:56 AM
Hi all,
After I uprageded all PA firewall and Panorama to version 9.1.5. My PA-3220 is working properly but not for PA-220.

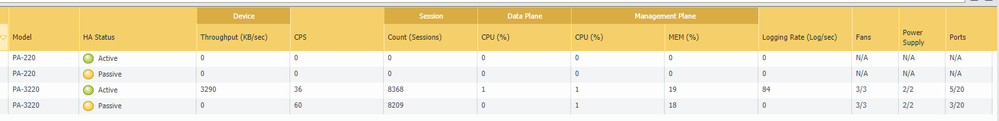

The operation is working fine but health information on Panorama for PA-220 is missing as capture below
Infomation like CPS,session, CPU utilization and etc.. are missing but connectivity between PA-220 and Panorama is seem good.
Accepted Solutions
- Mark as New
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report This Content
11-01-2020 08:34 PM - edited 11-01-2020 08:36 PM
Is PA 220 actively passing traffic?
Do you see traffic logs of PA 220 in Panorama?
Try to restart the management server on the PA 220.
Regards
- Mark as New
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report This Content
11-01-2020 08:34 PM - edited 11-01-2020 08:36 PM
Is PA 220 actively passing traffic?
Do you see traffic logs of PA 220 in Panorama?
Try to restart the management server on the PA 220.
Regards
- Mark as New
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report This Content
11-01-2020 08:46 PM
Hi@MP18
I can see traffic log coming from PA220 in Panorma.
I have tried to restart the management server on the PA220 but still no luck
- Mark as New
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report This Content
11-01-2020 08:54 PM
Other thing you can try is to restart the Management server of Panorama if that helps.
If still not working then I will recommend opening up TAC case.
Regards
- Mark as New
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report This Content
11-01-2020 09:40 PM - edited 11-01-2020 09:41 PM
Restart the mgmt server on PA-220 is working. Just take some time before it is working.
Thank you for your help @MP18
- Mark as New
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report This Content
03-19-2021 09:23 PM - edited 08-31-2021 06:54 PM
It is so annoying. It happened in all release in 9.1.x for PA-220. Over 90% of my devices got this problem during PANOS upgrade. I reported to PA support over a year ago and the problem is still existed until now (9.1.11).
