Pre-Logon Machine Certificate

[Rievax]

Hello All,

My issue is regarding the Machine Certificate selection in the Global Protect Agent.

Background information:

• We are using our own internal PKI (Active Directory). Our CA root has been imported and other systems are known to be working fine (i.e. Forward Trust Cert, SSL decryption... based on this Active Directory CA root)
• Our current implementation of Global Protect is working fine - but pre-logon was not originally configured.
• Our Active Directory is already configured to auto-enroll a Client certificate (OID Client Authentication (1.3.6.1.5.5.7.3.2)) and a Server certificate (OID Server Authentication (1.3.6.1.5.5.7.3.1)). That was previously  done for some other purposes, but the Client certificate is nothing special with the Subject filed populated with the CN along with the SAN.
• My goal is to start using the pre-logon logic.

The issue: whatever I am trying, as soon as I enable the pre-logon in the Global Protect Portal's Agent configuration, the GP client on the workstation will prompt to select a certificate. Basically, all certificates signed by our Active Directory CA will show up.

I opened a ticket with Palo Alto but after 3 weeks, they are still pointing me to the Docs and KB articles from Palo Alto' site.

If I delete all certificates but one, it works fine.

If I select any certificate, it works fine too (which seems logical since they are all signed by the same CA)

I also tried to create a Global Protect centric certificate with a custom OID - and forcing the OID in the GP App configuration. Same result: it just adds to the list of certificates to select.

So, it seems Palo Alto support cannot tell "why" it is doing that... Besides "please cross-check all the requirements as the error 'cert usage issue' will be only seen when the client certificate is not meeting the requirements.", I don't feel like they can tell what  the reason behind it is.

Any help is welcome! This is driving me crazy because I feel like I checked everything I could but still missing a key information - that apparently was not obvious to me.

Thanks for any answers!

R.

[Claw4609]

Hello,

Is this before the logon where the machine certificate is used or after initial logon where a client cert is used? When you specify the OID, do you see that key appear in the Windows registry?  (ext-key-usage-oid-for-client-cert <oidValue>) ? App Behavior Options (paloaltonetworks.com)

If the cert you are looking to use is signed by a specific template you can specify this template in the cert profile as well.

[Rievax]

Hello Claw4609,

Thanks for the reply.

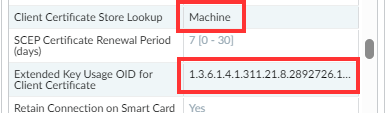

If I put the OID in the configuration:

It still prompts the certificates... and I do see the following in the HKLM (not the user HKEY):

ext-key-usage-oid-for-client-cert_PL [REG_SZ] 1.3.6.1.4.1.311.21.8.2892726.13712142.5523597.2770613.14610168.103.6471368.12477013

I tried to pre-populate "ext-key-usage-oid-for-client-cert" in the registry (HKLM) but that did not help.

Regarding your comment on the "signed by a specific template", I honestly did not try this far since I was at least hoping to make it work with the default Client cert....
