is it possible with a PA-3020 and OS 7.1.7 to set a bandwith limit for a complete subnet / Sub-Interface?



No matter which application etc.



Thanks!

15 REPLIES 15

Community Team Member

Hi @MPI-AE,



It is possible yes.  Please check the product info here :

https://www.paloaltonetworks.com/products/product-comparison.html?chosen=pa-3020



The QoS section more specifically :



QoS
Number of QoS policies 1,000
Physical interfaces supporting QoS 6
Clear text nodes per physical interface 31
DSCP marking by policy Yes
Subinterfaces supported System limit



System limit means that there is no defined hard limit.  It is driven by system capacity.



Compared to a 5020 where it is NOT supported :

https://www.paloaltonetworks.com/products/product-comparison.html?chosen=pa-5020



QoS
Number of QoS policies 1,000
Physical interfaces supporting QoS 12
Clear text nodes per physical interface 63
DSCP marking by policy Yes
Subinterfaces supported NA



Hope it helps !

-Kiwi

@kiwi



But when I want to add an interface under Network -> QoS, it only shows me my physical interfaces.



But that doesn't matter. I can switch the subinterfaces to physical interfaces.



The more important question is: Can I apply a maximum bandwith to all hosts in a subnet for all traffic?



For example guest users.

Community Team Member

Hi @MPI-AE,

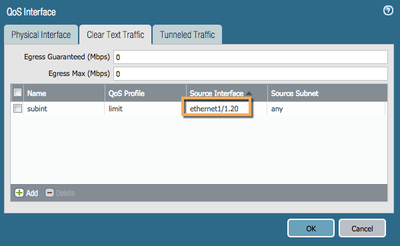

QoS needs to be enabled per physical interface but you can define subinterfaces in the configuration :



sub-interfacesub-interface

Cheers,

-Kiwi.

Hi @kiwi



will be very nice if you guide me through the configuration. That's very complex imo.



- Do I need a QOS profile with classes?

- Do I need a QOS Policy Rule where I define ssl and web-browsing and refer it to a class?



Questions over questions..



My subinterface is ae1.140  . That's the interface where all guest hosts are connected and I want to set a bandwith limit of 50Mbps to this subinterface for the complete internet download traffic.



Could you please help me with that?

Community Team Member

Hi @MPI-AE,



I suggest you start out here :

https://live.paloaltonetworks.com/t5/Featured-Articles/Getting-Started-Quality-of-Service/ta-p/68633



The above artice is an excellent resource explaining how to configure QoS.



Cheers !

-Kiwi.

Hi @kiwi



that means when I set up a Qos policy rule with the guest zone only and in the Qos interface rule I only mention ae1.140, the bandwith limitation is only applied to the ae1.140 subinterface?



Because there are 30 more subinterfaces beneath ae1.



That would be very dreadful if the limitation is applied to all ae1 subinterfaces.

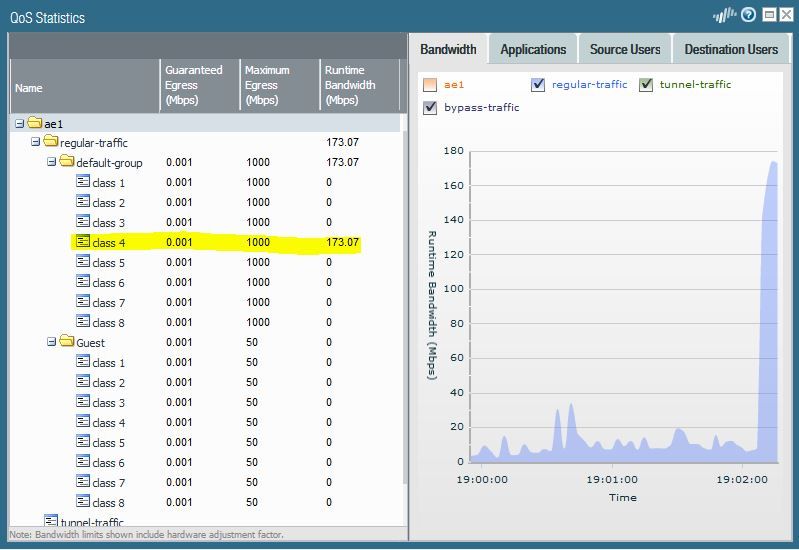

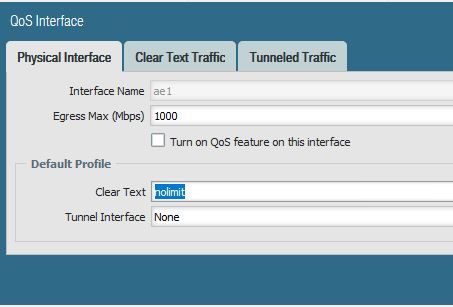

And I'm afraid about the default profile:


@MPI-AE,

The default profile is going to apply to the interface but unless you are actually utilizing QoS policies all traffic is just going to map to class4 which is the default on the Palo Alto.

If you are worried about effecting production traffic I would contact your SE and ask for a time to walk through this with him to make sure that you actually configure everything correctly and you aren't going to be applying bandwidth constraints where you don't want to.

@BPry,

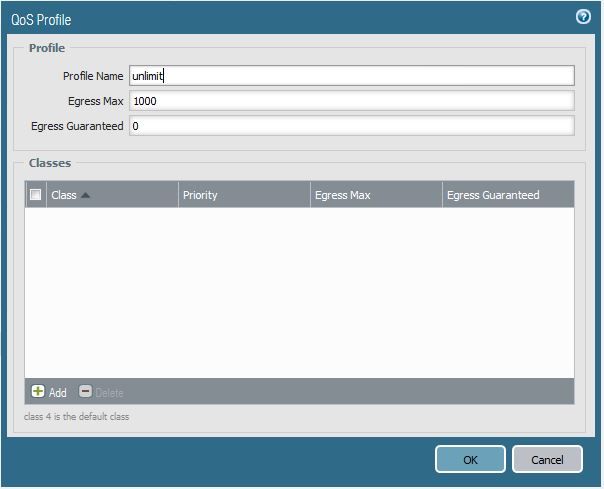

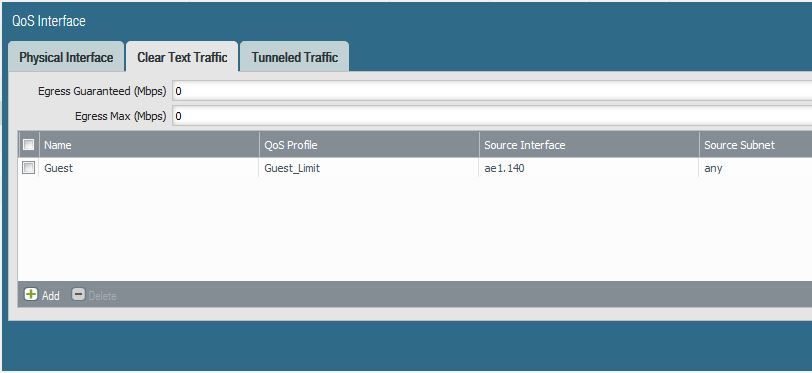

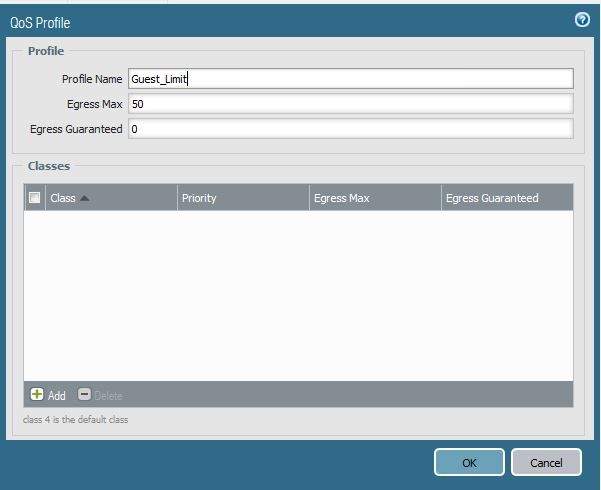

is the following configuration correct?




@MPI-AE,

You would need to actually enable QoS on that interface but otherwise if your intention is to simply limit the egress bandwidth then this would function fine.
