User-ID two usernames being identified by User-ID servers

Hi,


I am having troubles with getting the Palo's in my network to only use the UPN of a user in our environment. I would like to start creating security policies to control staff members access to resources based on their AD user rather than IP address and then further to that leverage groups. Long term of course the idea is to leverage AD groups to control access to resources, however I need to prove that this will work on individual users first.



It is not working currently because what I am seeing in the monitor logs is either domain\user.name or user.name@domain.local  and because of this whenever I make a security policy sometimes it works for the end user and then the next moment it doesn't work. It will work 100% of the time if I update the policy to domain\user.name and user.name@domain.local . This of course is not practical and scalable.

Currently we are using 2 Palo Alto Windows Server Agents to get the access data from our AD servers. Palo Alto monitor logs are reporting back connected and the User-ID log shows the source as being either of these servers.

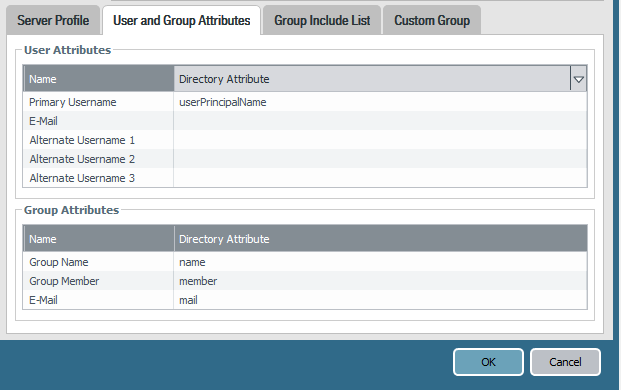

Here is some screenshots of our current configuration for the user & group mapping.




Are there additional settings, or things I need to be doing to resolve this and either only match on domain\user.name or user.name@domain.local

Thanks.



Daniel Bostock | Senior IT Operations Engineer, EML Payments | Blog: https://danielbostock.com
Highlighted
L7 Applicator

if you want everything to be UPN, you'll need to set userPrincipalName in the User Object Search Filter, and in the primary Username, or set sAMAccountName in both

Tom Piens - PANgurus.com
Find my book at amazon.com/dp/1789956374
Highlighted
L2 Linker

@reaper  - Thanks for your assistance here. I have updated the settings to match this but I am still seeing the duplicate username in the monitor traffic log and user-id log. Is this still expected? If this is expected and normal, I will do some policy testing just using the UPN.


Thanks.

Daniel Bostock | Senior IT Operations Engineer, EML Payments | Blog: https://danielbostock.com
Highlighted
L2 Linker

Highlighted
L2 Linker

@kgopichand- Thanks for sharing this post but I have already followed this guide and it sadly did not fix the issue.



Thanks,

Daniel Bostock | Senior IT Operations Engineer, EML Payments | Blog: https://danielbostock.com
Highlighted
L2 Linker

@DanielBostock

Ok , lets look into this further. If you want , you could open a ticket and one of us will investigate.


















One thing I noticed is the user attribute that is specified .


You specified
 "sAMaccount" . It is supposed to be "sAMAccountName".






Can you please change this entry to
"sAMAccountName" and repeat your tests .



Second point : If you  repeat the command "show user user-attributes user all" a number of times, what attribute do you see for the "Primary user" . Do the primary user attribute always show "sAMAccountName" or does it fluctuate between "sAMAccountName" and "userPrincipalName".







Regards

Kavi



Highlighted
L2 Linker

@kgopichand- Thanks for helping here Kavi appreciate it.



I would prefer to use UPN. Is this possible or for the sake of testing and working out the issue would you prefer I stick with SAM?

I adjusted my configuration to the following.









When I run the command you have suggested, I get a blank response. So maybe I am missing a configuration step somewhere?



Thanks,

Daniel Bostock | Senior IT Operations Engineer, EML Payments | Blog: https://danielbostock.com
Highlighted
L7 Applicator

@DanielBostock



are your user-id servers the only source of user-id...     check the user-id server monitor tab to see what it is forwarding to the palo.



Edit---   check the user-id log to see where the source is for the different user ID's.



if you have more than 1 user-id source (perhaps CP or GP) then increase your user-id agent timeout to 8-12 hours because it may be that the user ID agent timeout is too soon and other auth sources are remaining.



you can also exclude the domain part of usernames in the local user id agent setup but cannot see if this can be done with the server agents.

Highlighted
L1 Bithead

ust to be sure, your 'user domain' is set to the NetBIOS name, right? (domain, not domain.com)

Highlighted
L2 Linker

@MickBall

Correct the user-id servers are the only source currently. I can confirm this when I review the User-ID monitor tab as you suggested. Further to this I can see both versions of the username coming through on both servers in the same moment.



As in user.name@domain.local & domain\user.name exist in a log entry at the same time. The second User-ID server also records both of these duplicate usernames and does so with a Palo User-ID Monitor tab entry 1 second apart from the first server, or sometimes the other way around.



It seems the User-ID servers are determined to give the Pan-OS bother UPN and SAM.



We have not rolled out GP yet, and it is something that I am thinking from an Internal Gateway perspective to overcome the User-ID issues. However that's a bigger project as we would need to deprecate our current client to site vpn solution.



I cannot see in the User-ID agent server a way to filter either, potentially it may be worthwhile for testing not using the User-ID agent servers?

Daniel Bostock | Senior IT Operations Engineer, EML Payments | Blog: https://danielbostock.com
