IKE Certificate Authentication Peer ID

Reply
L1 Bithead

IKE Certificate Authentication Peer ID

Hi,



Im trying to setup a VPN connection using certificate based authentication. When Phase 1 tries to establish I'm getting the following error



Peer's ID payload ' IPv4_address:xxx.xxx.xxx.xxx' does not match certificate ID, Error: failed to get subjectAltName.



I have added the peer's IP address to the IP(SAN) of the  certificate and also tried using 'Permit peer identification and certificate payload identification mismatch' with no luck.

Any further suggestions on how to bring up phase 1?



Thanks

L2 Linker

The error seems to suggest that either A. The other side is sending a local identification that does not match any SAN that is present on the certificate or B. Does not contain a SAN attribute on the certificate at all.

Are both sides under your control, where you're able to generate a new certificate if need be or inspect the current attributes of the certificate it's using?



Also make sure the Certificate Profile on the VPN contains the Intermediate, Root or Self Signed certificate and is marked as a Trusted certificate in the local device store.

-- In case of emergency unplug cables--
L1 Bithead

Hi,



I can generate a new certificate if required.



The issue is that it's looking for the peer id which is an IP address in the SAN. I have added this into the cert and verified its there in the SAN but it still doesn't not get picked up during the phase 1 verification - would it be work adding another san entry like hostname and adding the IP address?

L2 Linker

If you can generate a new certificate it would defiantly be worth generating a new one containing additional SAN entries.

I'd suggest tagging on the SANs Hostname, FQDN and IP address and check if you can get the firewall to recognize these attributes as the Peer Identification.

-- In case of emergency unplug cables--
L1 Bithead

New certificate didn't do the trick. PA Support also don't seem to know either

L2 Linker

Are you sure you've imported the peers certificate, or signer of the certificate, in the local firewall and added a certificate profile containing this certificate which applies on the VPN?


The Peer Identification, local and peer, needs to match on both sides (Reverse local/Remote) and the Cert Profile, if containing the cert marked as trusted, should set up the Phase 1 connection.

-- In case of emergency unplug cables--
L1 Bithead

Ok to go through the motions..

I generated a CSR using my public IP as the CN

I sent my CSR to the peer who signed it and sent back their Root, Int CA's and my signed cert
I imported all 3

In the IKE setup I set the Cert to be the signed cert
I created a cert profile adding both CA's
I then set Local Identification to be my DN record of the Cert (as this populate this way)
I then set the Peer Identification to be their IP

If I change the IP to be something else it fails before the authentication saying the Peer ID they presented didnt match.

L2 Linker

Gotcha, just to clarify did you also designate SAN attributes for your firewall cert and for the cert the other firewall is using?

Like:


The additional attributes are SAN items which seem related to the error where no additional attributes were found.

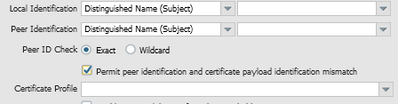

It would end up local something similar to the below screenshot if he other side has a certificate with Email Otherunit@local.local.




Lastly the intermediate and/or root need to be marked in the certificate store as trusted CA's




-- In case of emergency unplug cables--
L1 Bithead

I tried setting the SAN for IP to be that of the remote peer.



Im in the process of waiting for a new cert to be signed where the SAN IP is set to the local peer ip as you show in your screenshots.

L1 Bithead

Sorry yes, I have also set these to trusted.



If i set anything other than the IP address in the Peer Identification field i get the following error



received ID_R (type ipaddr [xxx.xxx.xxx.xxx]) does not match peer ID



So if i set it back to the IP i then get the cert error
