Active/active gateways in Azure and Panorama

Reply
Highlighted
L3 Networker

Active/active gateways in Azure and Panorama

I have two gateways in Azure operating as an active/active pair. They use the load balancer sandwich topology. I'd like to manage the pair from Panorama. Having a shared policy appears to be difficult.  The two can share a security policy easily enough. But the rules in a NAT policy reference IP addresses specific to a firewall. Example; a source nat which uses the egress interface (and IP) of a gateway.

Do I need to use individual templates/device-groups/policies in Panorama? Or is there a way for the two gateways to share a policy?



EDIT: I can set variables in a template in Panorama and set the value of those variables for a specific device. Variables can then be used for things like interface IP addresses and route tables. However i dont seem to be able to use a variable as the IP address in a NAT rule.

Thanks Claudec. If i set the interface ip to 'none' on the source nat (interface) rule, the rule still works fine.


Accepted Solutions
Highlighted
L1 Bithead

The firewalls can be apart of the same Device Group and Template Stack.



For inbound NAT policies, the set the source interface to the untrust NIC and the destination address to "any".  The DNAT address must be set to dynamic-destination-translation.



The example below has 2 inbound DNAT policies (jump-server and web-server) and 1 outbound SNAT (for outbound internet).  Ethernet1/1 is untrust and Ethernet1/2 is trust.



Screen Shot 2020-07-14 at 12.27.39 PM.png



(Optional & only if using Azure's public load balancer):  If you enable "Floating IP" on the load balancing rule, the original packet's destination address can be set to the load balancer's public IP.  This is useful if you have multiple applications that share the same port.



Screen Shot 2020-07-14 at 12.40.38 PM.png



















View solution in original post


All Replies
Highlighted
L2 Linker

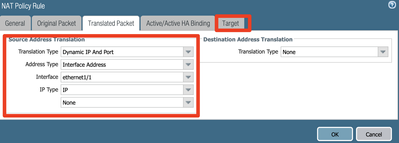

For your outbound flows, you can just configure a Panorama based NAT policy that uses a source translation that references the egress interface.



If for some other reason a NAT policy needs to be different on each firewall in the LB pair you could just use rule targets.






Highlighted
L1 Bithead

The firewalls can be apart of the same Device Group and Template Stack.



For inbound NAT policies, the set the source interface to the untrust NIC and the destination address to "any".  The DNAT address must be set to dynamic-destination-translation.



The example below has 2 inbound DNAT policies (jump-server and web-server) and 1 outbound SNAT (for outbound internet).  Ethernet1/1 is untrust and Ethernet1/2 is trust.



Screen Shot 2020-07-14 at 12.27.39 PM.png



(Optional & only if using Azure's public load balancer):  If you enable "Floating IP" on the load balancing rule, the original packet's destination address can be set to the load balancer's public IP.  This is useful if you have multiple applications that share the same port.



Screen Shot 2020-07-14 at 12.40.38 PM.png



















View solution in original post
