L4 Transporter

How to parse op(cmd) results

I am new to python. I am able to get results using op() method but not able to display or parse them to use meaningfully.





fw = pandevice.base.PanDevice('10.10.10.10',api_key='abcdefgh')
fwcmd = fw.op(cmd='show global-protect-gateway current-user',xml=True)

print(type(fwcmd),"\n\n")
print(fwcmd)





the result this yields is like



<class 'bytes'>
b'<response status="success"><result>\n\t<entry>\n\t\t<domain>abc</domain>\n\t\t<islocal>no</islocal>\n\t\t<username>xyz....................





 I would want a result that looks something like this and be able to easily operate on those results.





Person ID: system
hostname: ABC-PAN
ip-address: 10.10.10.10
public-ip-address: unknown
netmask: 255.255.2255.0
default-gateway: 10.10.10.1
is-dhcp: False
ipv6-address: unknown
++





Above results i got using



import pandevice
from pandevice import base

fw = pandevice.base.PanDevice('10.10.10.10',api_key='abdefgh')
jpfw = fw.show_system_info()

for p_id, p_info in jpfw.items():
    print("\nPerson ID:", p_id)

    for key in p_info:
        print(key + ':', p_info[key])




Accepted Solutions
Highlighted
L4 Transporter

Re: How to parse op(cmd) results

5 days for this small piece of code...might not be the best way...but got it working as i would like it to...and can now use it possibly for something



import pandevice
from pandevice import base
import xml.etree.ElementTree as ET


fw = pandevice.base.PanDevice('10.10.10.10',api_key='abcdefgh')
fcmd = fw.op(cmd='show global-protect-gateway current-user',xml=True)

str_xml = str(fwcmd,encoding='utf-8')
#print(str_xml)

xml_parser = ET.XMLParser()
xml_tree = ET.ElementTree(ET.fromstring(str_xml,xml_parser))
xml_root = xml_tree.getroot()


for elem in xml_root.iter():
    if elem.tag != 'entry' and elem.tag != 'response' and elem.tag != 'result':
        print(elem.tag,': ',elem.text)
    else:
        print('')



result looks like this where elem.tag is the string on left and elem.text is the string on right of ':'

domain :  abc
islocal :  no
username :  xyz
primary-username :  abc\xyz
computer :  C_NAME
client :  Microsoft Windows 10 Home , 64-bit
vpn-type :  Device Level VPN
virtual-ip :  10.1.1.1
virtual-ipv6 :  ::
public-ip :  2.2.2.2
public-ipv6 :  ::
tunnel-type :  SSL
public-connection-ipv6 :  no
login-time :  Mar.27 06:31:46
login-time-utc :  1585315906
lifetime :  7200







View solution in original post


All Replies
Highlighted
L4 Transporter

Re: How to parse op(cmd) results

5 days for this small piece of code...might not be the best way...but got it working as i would like it to...and can now use it possibly for something



import pandevice
from pandevice import base
import xml.etree.ElementTree as ET


fw = pandevice.base.PanDevice('10.10.10.10',api_key='abcdefgh')
fcmd = fw.op(cmd='show global-protect-gateway current-user',xml=True)

str_xml = str(fwcmd,encoding='utf-8')
#print(str_xml)

xml_parser = ET.XMLParser()
xml_tree = ET.ElementTree(ET.fromstring(str_xml,xml_parser))
xml_root = xml_tree.getroot()


for elem in xml_root.iter():
    if elem.tag != 'entry' and elem.tag != 'response' and elem.tag != 'result':
        print(elem.tag,': ',elem.text)
    else:
        print('')



result looks like this where elem.tag is the string on left and elem.text is the string on right of ':'

domain :  abc
islocal :  no
username :  xyz
primary-username :  abc\xyz
computer :  C_NAME
client :  Microsoft Windows 10 Home , 64-bit
vpn-type :  Device Level VPN
virtual-ip :  10.1.1.1
virtual-ipv6 :  ::
public-ip :  2.2.2.2
public-ipv6 :  ::
tunnel-type :  SSL
public-connection-ipv6 :  no
login-time :  Mar.27 06:31:46
login-time-utc :  1585315906
lifetime :  7200







View solution in original post

Highlighted
L4 Transporter

Re: How to parse op(cmd) results

Glad you got it working!  fw.op() will return an xml.etree.ElementTree by default, so turning it into a string and then having to re-parse it is a (small) waste.  You're using a PanDevice object instead of the Firewall object, so I'd recommend changing that for clarity's sake.  Then lastly you know what the result looks like, so you can use xml.etree.ElementTree.findall() to get there directly:



from pandevice.firewall import Firewall
import xml.etree.ElementTree as ET

fw = Firewall('10.10.10.10', api_key='abcdefgh')
result = fw.op(cmd='show global-protect-gateway current-user')

# If you wanted to see the xml response as a string:
# print(ET.tostring(result, encoding='utf-8')

for elm in result.findall('./response/entry'):
  print(elm.attrib['name'] + ':')
  for e in elm:
    print(e.tag + ': ' + e.text)



Highlighted
L4 Transporter

Re: How to parse op(cmd) results

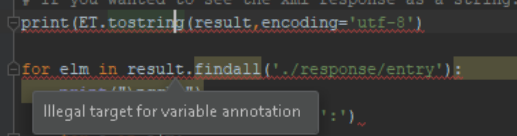

@gfreeman i tried your code but it did not work for me. I tried to check if event the for loop gets executed it did not print 'TEST'.

ET does not seem to like tostring/findall





fw = Firewall('10.10.10.10',api_key='abcdefgh')
result = fw.op(cmd='show global-protect-gateway current-user')
print(type('result\n'))
# If you wanted to see the xml response as a string:
#print(ET.tostring(result, encoding='utf-8')

for elm in result.findall('./response/entry'):
    print("\nTEST\n")
    print(elm.attrib['name'] + ':')
    for e in elm:
        print(e.tag + ': ' + e.text)
