Test URL -> Operation Failed: URL access error

LassiK
L1 Bithead

‎03-16-2021 04:03 AM

Ive been reading this forum for similar problems, but seems I have different problem.

I must say I had difficulties building this, but now this seems to be the last obstacle.

So I got minemeld up and running and its able to get feed and I can access the URL https://"Server IP here"/feeds/o365-worldwide-any-url-feed

Then I created new CA for the minemeld webpage and imported that to firewall (v8.1. something so the bug before should not affect here).

But here lies the problem:


I tried Test URL button and Ive been given an error:

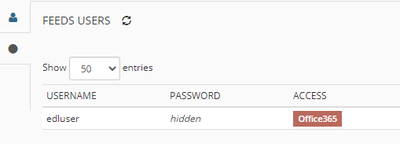

User created at minemeld:

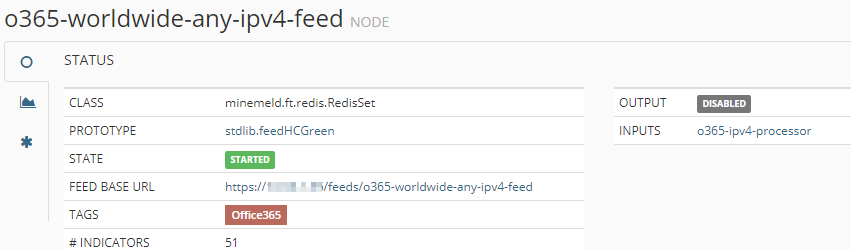

and linked to node:




URL works and returns the IP list.

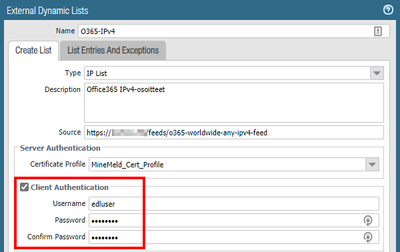

Credentials added to firewall (also Cert is linked):






But something seems to blocks paloalto to access the URL

Other topic had request for API log from MineMeld and here it is:



[2021-03-16 11:33:35 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 2
[2021-03-16 11:33:35 EET] [20021] [DEBUG] RPC sent to @mbus:master:rpc for method status
[2021-03-16 11:33:35 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 2
[2021-03-16 11:33:35 EET] [20021] [DEBUG] redis connection pool: in use: 0 available: 1
127.0.0.1 - - [16/Mar/2021:11:33:35 +0200] "GET /feeds/o365-worldwide-any-ipv4-feed HTTP/1.0" 200 1395 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 11:33:39 EET] [20021] [INFO] no receivers

(I cut a whole lot of these no receivers away from this dump)
[2021-03-16 12:24:39 EET] [20021] [INFO] no receivers
[2021-03-16 12:24:55 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 2
[2021-03-16 12:24:55 EET] [20021] [DEBUG] redis session connection pool: in use: 1 available: 1
127.0.0.1 - - [16/Mar/2021:12:24:55 +0200] "GET /extensions?_=1615890267 HTTP/1.0" 401 12 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:24:55 +0200] "GET /status/minemeld?_=1615890267 HTTP/1.0" 401 12 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:24:55 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 2
127.0.0.1 - - [16/Mar/2021:12:24:55 +0200] "GET /supervisor?_=1615890267 HTTP/1.0" 401 12 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:24:55 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 2
[2021-03-16 12:24:55 EET] [20021] [DEBUG] redis session connection pool: in use: 1 available: 1
127.0.0.1 - - [16/Mar/2021:12:24:55 +0200] "GET /status/info?_=1615890267 HTTP/1.0" 401 12 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:24:55 +0200] "GET /aaa/users/current?_=1615890267 HTTP/1.0" 401 12 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:24:59 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 2
127.0.0.1 - - [16/Mar/2021:12:24:59 +0200] "POST /login?_=1615890271 HTTP/1.0" 200 2 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:24:59 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 2
[2021-03-16 12:24:59 EET] [20021] [DEBUG] redis session connection pool: in use: 1 available: 1
[2021-03-16 12:24:59 EET] [20021] [DEBUG] RPC sent to @mbus:master:rpc for method status
[2021-03-16 12:24:59 EET] [20021] [DEBUG] redis session connection pool: in use: 1 available: 1
127.0.0.1 - - [16/Mar/2021:12:24:59 +0200] "GET /status/minemeld?_=1615890271 HTTP/1.0" 200 2137 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:24:59 EET] [20021] [DEBUG] redis session connection pool: in use: 1 available: 2
[2021-03-16 12:24:59 EET] [20021] [DEBUG] redis session connection pool: in use: 2 available: 1
[2021-03-16 12:24:59 EET] [20021] [DEBUG] redis session connection pool: in use: 3 available: 0
[2021-03-16 12:25:00 EET] [20021] [INFO] redis connection pool: in use: 0 available: 1
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /extensions?_=1615890271 HTTP/1.0" 200 19 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:25:00 EET] [20021] [DEBUG] redis session connection pool: in use: 3 available: 1
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /prototype?_=1615890271 HTTP/1.0" 200 280688 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /status/info?_=1615890271 HTTP/1.0" 200 70 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /aaa/users/current?_=1615890271 HTTP/1.0" 200 71 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /supervisor?_=1615890271 HTTP/1.0" 200 594 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:25:00 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
[2021-03-16 12:25:00 EET] [20021] [DEBUG] redis session connection pool: in use: 1 available: 3
[2021-03-16 12:25:00 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
[2021-03-16 12:25:00 EET] [20021] [DEBUG] redis session connection pool: in use: 1 available: 3
[2021-03-16 12:25:00 EET] [20021] [DEBUG] redis session connection pool: in use: 1 available: 3
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /config/running?_=1615890271 HTTP/1.0" 200 1276 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /metrics/minemeld/miners?_=1615890271&dt=86400&r=1800 HTTP/1.0" 200 26127 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /metrics/minemeld/outputs?_=1615890271&dt=86400&r=1800 HTTP/1.0" 200 26138 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:25:00 +0200] "GET /metrics/minemeld?_=1615890271&dt=86400&r=1800 HTTP/1.0" 200 64152 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:25:55 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
[2021-03-16 12:25:55 EET] [20021] [DEBUG] RPC sent to @mbus:master:rpc for method status
127.0.0.1 - - [16/Mar/2021:12:25:55 +0200] "GET /status/minemeld?_=1615890327 HTTP/1.0" 200 2137 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:25:55 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
127.0.0.1 - - [16/Mar/2021:12:25:55 +0200] "GET /supervisor?_=1615890327 HTTP/1.0" 200 594 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:25:59 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
[2021-03-16 12:25:59 EET] [20021] [DEBUG] RPC sent to @mbus:master:rpc for method status
127.0.0.1 - - [16/Mar/2021:12:25:59 +0200] "GET /status/minemeld?_=1615890331 HTTP/1.0" 200 2137 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:26:00 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
127.0.0.1 - - [16/Mar/2021:12:26:00 +0200] "GET /supervisor?_=1615890332 HTTP/1.0" 200 594 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:26:55 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
[2021-03-16 12:26:55 EET] [20021] [DEBUG] RPC sent to @mbus:master:rpc for method status
127.0.0.1 - - [16/Mar/2021:12:26:55 +0200] "GET /status/minemeld?_=1615890387 HTTP/1.0" 200 2137 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:26:55 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
127.0.0.1 - - [16/Mar/2021:12:26:55 +0200] "GET /supervisor?_=1615890387 HTTP/1.0" 200 594 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:26:59 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
[2021-03-16 12:26:59 EET] [20021] [DEBUG] RPC sent to @mbus:master:rpc for method status
127.0.0.1 - - [16/Mar/2021:12:26:59 +0200] "GET /status/minemeld?_=1615890391 HTTP/1.0" 200 2137 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:27:00 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
127.0.0.1 - - [16/Mar/2021:12:27:00 +0200] "GET /supervisor?_=1615890392 HTTP/1.0" 200 594 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:27:09 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
[2021-03-16 12:27:09 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
127.0.0.1 - - [16/Mar/2021:12:27:09 +0200] "GET /supervisor?_=1615890400 HTTP/1.0" 200 594 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
127.0.0.1 - - [16/Mar/2021:12:27:10 +0200] "GET /status/system?_=1615890400 HTTP/1.0" 200 194 "https://10.53.1.55/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.90 Safari/537.36 Edg/89.0.774.54"
[2021-03-16 12:27:11 EET] [20021] [DEBUG] redis session connection pool: in use: 0 available: 4
[2021-03-16 12:27:11 EET] [20021] [INFO] AUDIT - {"msg": null, "action": "GET /logs/minemeld-web.log", "params": [], "user": "admin/admin"}



This last line which says admin/admin is also weird as Im not using such credentials anywhere.



any help?

0 Likes Likes
1 REPLY 1

LassiK
L1 Bithead

‎03-25-2021 11:27 PM

Ive done some more testing and it seems if I remove the authentication  by using "anynomous" tag , the test url button works again.

But I cant seem to find the root reason why authentication fails if I enable it by "Office365" tag as it is in guide.
