Authentication failed from AD

[Jafar_Hussain]

Hello,

I have integrated the AD with Paloalto , it is working fine and i can see the IP user mapping is correct, once i tested authentication profile

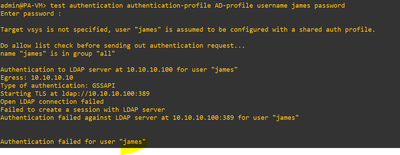

I got the below error:-

Once i tested the authentication by local profile it is working fine.

Can anyone help me on this to reolve this issue.

[Chris_Johnston]

IP to UserMapping is separate than LDAP.

Based off your error message in the first screenshot, 'Failed to create a session with LDAP server', I would point towards a network level issue from the firewall MGMT IP (assuming no custom service routing) and the LDAP controller.  Could also be permissions on the service account used, but I would bet dollars to donuts it's network level. Also - TLS/389?  I know it's possible, but...might need to swap to port 636

Local auth used in second is just authenticating against the local user database on the FW, no LDAP connection needed

[MP18]

@Jafar_Hussain

Is this new setup?

Please check below document it has step bu step info on troubleshooting

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClpoCAC

Also try below commands to do the TCPdump on the management port

Command to capture LDAP traffic if using management port

> tcpdump filter "port 389"

Command to view the pcap taken off the management port

> view-pcap mgmt-pcap mgmt.pcap

Regards

[Jafar_Hussain]

@Chris_Johnston @MP18

Yes this is a new setup. i have gone through the documents and changed the service account with ssl/tls 636 port.

My LDAP, UID, DNS service route changed via data plane interface  I have tried everything but still, the issue is the same.

[Chris_Johnston]

Will need to check your authd.log if you've checked everything from above.  I would also double check your firewall policy to ensure that dataplane source interface/zone is allowed to the other zone that 10.10.10.100 exists in.

I've also noticed theres more helpful information in group mapping failures versus auth attempts (lists bad password/fail to connect/etc).  Do you have group mapping configured for the associated ldap profile?  If you show the group mapping state, what is the output?

CLI

show user group-mapping state <name of group mapping profile referencing the LDAP Profile>

Future troubleshooting for auth specific, if group mapping is successful.

SSH to firewall, issue the following command

tail follow yes mp-log authd.log

while that is running, test authentication via another SSH window and paste results (sans business specific information that may be present)
